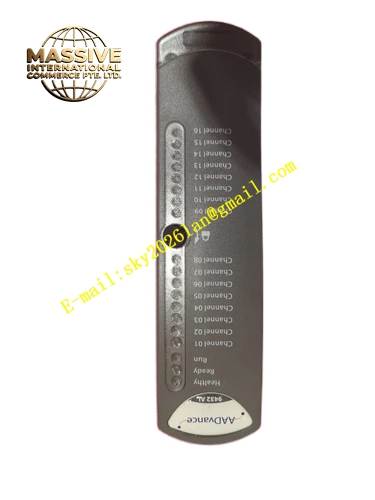

ICS Triplex T9801

ICS Triplex T9801

Product Brief Introduction: T9801 is field termination assembly hardware for Trusted TMR digital input modules. It builds physical signal transmission bridge between rack‑mounted digital‑input I/O modules and field discrete switches, position sensors and emergency‑stop devices. This module completes field signal wiring access, surge suppression and signal conditioning, converts field switch signals into signals matching Trusted I/O module electrical characteristics.

Request Quote
Category:

Description

ICS Triplex T9801

Technical Specifications & Performance Parameters:

  • Supported Signal Type: 24 VDC discrete digital input signal
  • Channel Quantity: 8 field input channels
  • Input Signal Threshold: 10 VDC logic low, 18‑32 VDC logic high
  • Per‑Channel Input Current: 4‑6 mA
  • Galvanic Isolation Rating: 2500 V reinforced isolation between field‑side and I/O‑module side
  • Power Consumption: Max 4.2 W
  • Protection Mechanisms: Channel‑level transient‑voltage surge suppression, over‑voltage clamping protection
  • Safety Certification: TÜV IEC 61508 SIL 3, UL, CE
  • Operating Temperature: ‑20 °C ~ +60 °C
  • Storage Temperature: ‑40 °C ~ +85 °C
  • Ambient Humidity: 5 %‑95 % RH non‑condensing
  • Weight: 0.44 kg
  • Form Factor: DIN‑rail‑mounted cabinet internal field termination assembly

Functional Features:

  • Physical signal transition interface for Trusted TMR digital‑input modules
  • Independent channel‑level surge‑suppression circuit, absorb transient voltage spikes generated by field‑wiring inductive coupling
  • Reinforced galvanic‑isolation barrier, block ground‑loop interference from field‑side wiring
  • Screw‑type high‑torque field‑wiring terminal blocks, convenient for on‑site cable termination
  • Matched dedicated ribbon‑cable realizes signal connection between T9801 and rack‑mounted digital‑input module
  • Front‑panel per‑channel LED indicators, directly reflect real‑time field‑switch on‑off status
  • Compact mechanical dimension, occupy small cabinet installation space
  • No local safety‑logic computation function; all signal voting and diagnostic work run on Trusted rack‑side I/O module

Working Principle: Field 24 VDC discrete switch signals access T9801 screw‑type wiring terminals. Each signal channel passes surge‑suppression circuit and optocoupler isolation unit. Conditioned digital signals transmit through dedicated ribbon‑cable to Trusted rack‑mounted TMR digital‑input module. Rack‑side module completes triple‑redundant signal sampling and hardware 2‑out‑of‑3 voting calculation. Front‑panel LED lamps directly follow field‑side switch state changes. T9801 purely undertakes physical‑layer signal conditioning and wiring transition tasks.

Material Composition & Structural Characteristics:

  • Housing: Flame‑retardant ABS engineering plastic housing for cabinet‑internal DIN‑rail installation
  • Circuit substrate: Multi‑layer FR‑4 industrial printed circuit board, integrate surge‑suppression and optocoupler isolation components
  • Field connection: Screw‑type anti‑loosening wiring terminal blocks
  • Internal interconnection: Gold‑plated ribbon‑cable connector for I/O‑module connection
  • Front panel: Embedded LED indicator group and channel‑marking area, protection grade IP20

Installation Requirements:

  • Mount T9801 on standard DIN‑rail inside control cabinet, install adjacent to corresponding Trusted I/O rack
  • Use factory‑specified dedicated ribbon‑cable for connection between T9801 and Trusted digital‑input module
  • Field digital‑input wiring adopt shielded twisted‑pair cables, separate routing from high‑voltage AC power cables
  • Cable shielding layer implement single‑end grounding at cabinet protective ground bus‑bar
  • Cabinet protective ground resistance ≤4 Ω
  • Keep ribbon interconnection cable away from frequency‑conversion equipment and high‑power motor cables to avoid electromagnetic interference
  • Do not install in environment with direct corrosive‑gas exposure

Application Scenarios:

  • ESD emergency‑shutdown system emergency‑stop switch and equipment position‑switch signal termination
  • Fire‑gas safety monitoring system discrete detector switch‑signal physical interface
  • Chemical plant safety‑interlock field digital‑signal wiring transition
  • Power‑plant safety‑instrumented‑system auxiliary‑equipment status‑signal termination
  • Off‑shore platform safety‑switch signal conditioning and wiring interface

Usage Notes:

  • Cut off field‑circuit power supply before executing any field‑wiring modification work
  • Forbid using non‑standard ribbon‑cables to connect with Trusted I/O module
  • Module shell disassembly is forbidden; zero user‑serviceable internal components
  • After field‑cable rework, verify every channel LED status matches actual field‑switch state
  • Operate strictly within rated operating temperature range
  • Periodically inspect field‑wiring terminal fastening torque and cable insulation performance
