Description

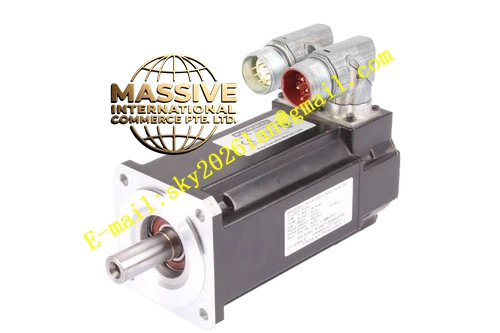

Kollmorgen CR06200‑000000
Technical Specifications Rated brake voltage 24VDC, static holding torque 6.2 Nm, brake release current 0.45A, response time pull‑in 35ms, release 25ms, operating temperature ‑20‑60°C.
Functional Features Power‑off locking principle. Friction‑plate braking structure. Low residual torque. Built‑in noise‑reduction gasket. Matched mechanical mounting dimension for servo motor.
Application Scenarios Vertical‑axis servo mechanism, robot joint, lifting automation equipment, positioning platform requiring anti‑fall protection.
Performance Parameters Allowable dynamic braking frequency less than 10 times per minute. Service life of friction plate ≥1 million static‑locking cycles.
Material Composition Electromagnetic coil assembly, metal friction disk, spring group, high‑strength alloy steel brake hub, metal housing.
Structural Features Compact disc‑type structure. Coaxial installation at motor rear‑end. Spring‑force locking in power‑off condition. Electromagnetic attraction releases brake when energized.
Working Principle In power‑off state, spring group presses friction disk to produce static holding torque. After applying rated 24 VDC voltage, electromagnetic force compresses spring and separates friction disk to release motor shaft rotation.
Installation Requirements Install as integrated assembly inside servo motor. Wiring strictly follow rated 24 VDC. Voltage fluctuation must stay within ±10% rated range.
Usage Notes This brake is for static holding only, not for dynamic emergency braking. Avoid frequent high‑speed dynamic braking. Do not apply over‑voltage to coil.
