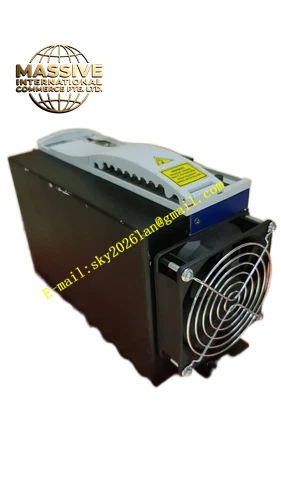

Kollmorgen CR10561

Kollmorgen CR10561

Product Introduction
The CR10561 is a high-performance servo drive belonging to Kollmorgen’s ServoStar CD product family, specifically part of the CD5 series. It is designed for industrial motion control applications requiring precise position, speed, and torque regulation of servo motors. The CR prefix designates the ServoStar CD amplifier platform, and the numeric suffix identifies its specific power class and configuration. This model delivers high performance with advanced control algorithms and efficient power conversion technology, providing excellent dynamic performance and response speed for complex motion tasks.

Request Quote
Category:

Description

Kollmorgen CR10561

Technical Specifications

  • Product Family: ServoStar CD Series
  • Series: CD5
  • Device Designation: CR10561
  • Product Category: Servo Drive / Servo Amplifier
  • Rated Output: Approximately 10 kW (varies by configuration)
  • Protection Rating: IP20
  • Switching Frequency: 10 kHz
  • Interface Types: JST interface, MOLEX interface
  • Structure Type: Fixed-type servo drive unit

Functional Features

  • High Precision: Achieves smooth torque control and speed regulation, meeting the demands of high-precision industrial applications
  • High Responsiveness: Fast response capability that reacts rapidly to control signals, satisfying applications with demanding dynamic performance requirements
  • Stability: Outstanding operational stability that maintains consistent performance during extended running periods, reducing faults and downtime
  • Ease of Use: Plug-and-play configuration options that simplify integration and lower the barrier for users
  • Versatility: Supports multiple feedback devices and communication protocols for integration with various control systems and motors
  • Servo Control: Provides closed-loop torque, speed, and position control for servo motors
  • Compact Design: Space-saving form factor suitable for integration into control cabinets
  • Feedback Interface: Supports standard servo motor feedback devices including encoders and resolvers
  • Communication Interface: Integrated communication ports for configuration and fieldbus connectivity
  • Protection Functions: Overcurrent, overvoltage, undervoltage, and thermal protection for safe operation

Application Scenarios

  • Machine Tools: Feed systems for high-precision cutting operations
  • Packaging Machinery: Conveyor systems for high-speed, stable packaging operations
  • Automated Production Lines: Core control component to improve production efficiency and product quality
  • Harsh Environment Applications: Designed for demanding environments including food and beverage processing with rigorous washdown operations and oil and gas industry explosion-proof requirements
  • Material Handling: Automated storage and retrieval systems
  • General Motion Control: Applications requiring precise speed and position regulation

Performance Parameters

  • Drive Type: Digital servo drive
  • Control Mode: Torque, speed, and position control
  • Switching Frequency: 10 kHz for enhanced control precision and response speed
  • Protection Class: IP20, protecting internal components from solid foreign objects and water droplets
  • Protection Features: Integrated electronic protection for overcurrent, overvoltage, undervoltage, and overheating conditions

Material Composition

  • Metal housing with integrated power electronics, control circuitry, and heat dissipation components

Structural Features

  • Form Factor: Compact fixed-mount servo drive
  • Mounting: Panel or DIN rail mounting inside control cabinets
  • Connectors: Power input/output terminals, motor connection terminals, feedback connector, and communication interface
  • Status Indication: LED indicators for power, status, and fault conditions

Working Principle
The CR10561 receives AC or DC power input, converts it to the appropriate bus voltage, and drives the connected servo motor through its power stage. The drive uses feedback from the motor’s encoder or resolver to maintain precise closed-loop control of torque, speed, or position as commanded by the host controller. Advanced control algorithms ensure fast dynamic response and high-precision motion execution.

Installation Requirements

  • Mount inside a properly ventilated control cabinet
  • Ensure adequate clearance around the drive for heat dissipation
  • Connect power supply with appropriate fusing and cable sizing
  • Ensure proper grounding of the drive chassis
  • Use shielded cables for motor and feedback connections
  • Follow EMC-compliant wiring practices

Usage Notes

  • Verify compatibility with the connected servo motor before commissioning
  • Configure drive parameters according to the specific motor and application requirements
  • Monitor drive temperature during continuous operation
  • Do not disconnect motor or power cables while the drive is energized
  • Regularly check for firmware updates and apply as needed
  • Consult the product manual for detailed parameter settings and fault codes
