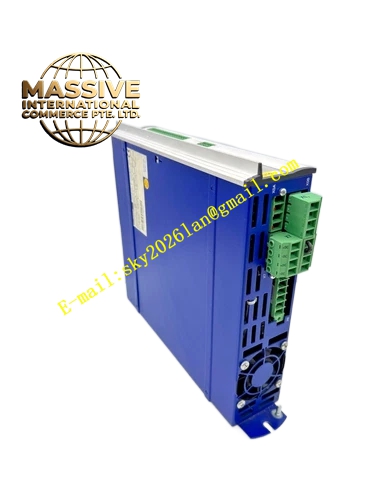

Kollmorgen S60300
Technical Specifications
- Rated Supply Voltage: 3 × 230V AC at 50 Hz (–10% to +10%) or 3 × 208V AC at 60 Hz (–10% to +10%)
- Rated Output Current (RMS): 3A
- Peak Output Current: 6A RMS (up to 5 seconds)
- Rated Installed Load: 2 kVA
- DC Bus Link Voltage: 290V to 675V
- Output Transistor Clock Frequency: 8 kHz (adjustable up to 16 kHz at 400V DC link)
- Max Load Inductance: 75 mH
- Min Load Inductance: 12 mH
- Overvoltage Protection: 450V to 900V DC
- Residual Voltage Drop at Rated Current: 5V
- Output Current Form Factor: 1.01
- Current Controller Bandwidth: Exceeds 1.2 kHz
- Auxiliary Supply: 28VDC logic interface
- Operating Temperature: –40°C to +70°C
- Dimensions: 275mm × 70mm × 265mm (H×W×D)
- Weight: Approximately 1.8 kg
Functional Features
- Wide AC Supply Range: Compatible with 230V to 480V AC motor networks
- High-Speed PWM: 8 kHz standard, up to 16 kHz at 400V DC link
- Brake Output Control: Minimum 0.15A to maximum 2A for external holding brake coils
- Relay Output: DC switching up to 30V or AC switching up to 42V at 500mA maximum
- Thermal Management: Optimized through anodized aluminum enclosure (15W dissipation when disabled, 40W at rated current)
- Quick-Disconnect Terminals: Simplified field wiring
- Environmental Sealing: Moisture and vibration resistant
- Multi-Feedback Support: Resolver, sine encoder, incremental encoder, EnDat, HIPERFACE, BISS
Application Scenarios
- CNC Machines: Precision axis positioning and contouring
- Packaging Lines: High-speed material transport and positioning
- Robotics: Joint control for industrial robots
- General-Purpose Servo Systems: Reliable torque and speed control
- Material Handling: Conveyor and transfer systems
- Printing and Textile Machinery: Synchronized motion control
Performance Parameters
- Continuous Current: 3A RMS
- Peak Current: 6A RMS (5-second duration)
- Current Loop Bandwidth: Exceeds 1.2 kHz
- Power Dissipation: 15W (disabled), 40W (rated current)
- DC Bus Range: 290V to 675V
- Control Modes: Torque, speed, position
Material Composition
Anodized aluminum alloy panel with moisture and vibration resistant finish. Internal components include digital signal processor, IGBT power modules, and integrated EMC filter.
Structural Features
- Panel Mount: Standardized aircraft mounting cutout for drop-in replacement
- Compact Dimensions: 275mm × 70mm × 265mm (H×W×D)
- Quick-Disconnect Terminals: For simplified field wiring
- Anodized Aluminum Enclosure: Provides thermal management and environmental protection
- Front Panel LED Display: Status and fault indication
