Description

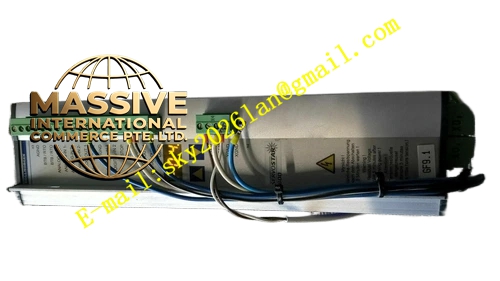

Kollmorgen S70301-FN
- Technical Specifications:
- Series: ServoStar 700 (S700), S703 sub-series
- Type: Digital servo amplifier
- Rated Line Power: 2.2 kVA (S1 operation)
- Rated Output Current: 5 Arms at 1×110 V / 1×230 V; 4 Arms at 3×400 V; 3 Arms at 3×480 V
- Peak Output Current: 9 Arms
- Input Voltage: 1×110 V–230 V or 3×208 V–480 V, 50/60 Hz
- DC Bus Voltage: 290–675 VDC
- Auxiliary Power: 24 VDC
- Functional Features:
- Multi-mode servo control: torque, velocity, position, and programmable positioning
- Onboard EtherCAT and CANopen fieldbus communication
- Dual-channel STO safety function (SIL2/PLd)
- Multi-feedback support: resolvers, SinCos encoders (BiSS, EnDat, HIPERFACE), incremental encoders, Hall sensors
- Integrated autotuning with oscilloscope and Bode plot display
- IEC 61131-3 macro programming (128 KB code memory)
- Internal brake resistor and EMC filter
- Application Scenarios:
- CNC machine tool axis drives
- Industrial robotics and material handling
- Automated assembly and processing equipment
- Medical device automation
- Performance Parameters:
- Current loop update rate: 62.5 µs
- Velocity loop update rate: 62.5 µs
- Position loop update rate: 250 µs
- PWM switching frequency: 8 kHz
- Peak current capability: up to 3× continuous rating for short bursts
- Material Composition:
- Rugged metal chassis with integrated heat sink
- IGBT-based power stage with protective circuitry
- Internal EMC filter components
- Structural Features:
- Panel-mount enclosure with standard industrial I/O connectors
- Embedded LED status display for diagnostics
- MMC storage card slot for parameter backup and firmware updates
- RS232 interface for full programming via PC
- Working Principle:
- Digital closed-loop servo control with PID regulation. The drive receives motion commands, processes them through embedded control loops, and outputs modulated PWM signals to the motor. Feedback from the motor’s encoder or resolver is continuously compared against the command to minimize error. The macro programming environment enables standalone motion logic execution.
- Installation Requirements:
- Mount in a well-ventilated control cabinet
- Use shielded cables for all motor, feedback, and fieldbus connections
- Ensure proper grounding and equipotential bonding
- Maintain minimum clearance for thermal management
- Usage Notes:
- The “FN3” suffix indicates a different feedback/network interface configuration compared to the “-FN2” variant — verify exact interface pinout and protocol compatibility with the connected motor and controller
- This is a legacy product; consult Kollmorgen for AKD-series migration options
