Kollmorgen S70601-NA

Kollmorgen S70601-NA

Product Introduction

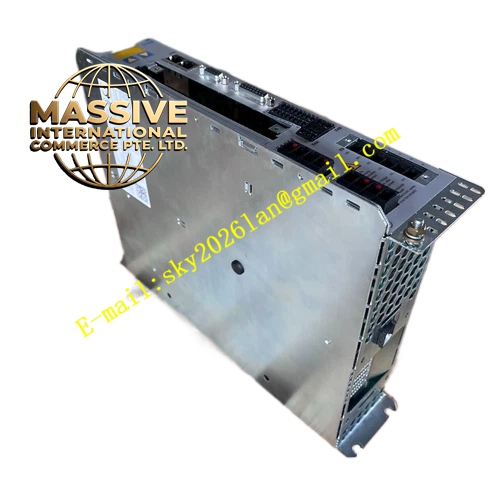

The S70601-NA is a digital servo amplifier in the Kollmorgen SERVOSTAR S700 family, belonging to the S706 size class. The “NA” suffix indicates the standard North American configuration with CANopen and EtherCAT onboard, single-channel STO, and 208–480 V mains voltage. This model is the entry-level device in the S706 class, providing higher power capability than the S703 class for heavy-duty servo applications.

Request Quote
Category:

Description

Kollmorgen S70601-NA

Technical Specifications

  • Product Family: SERVOSTAR S700 Series
  • Size Class: S706
  • Device Designation: S70601-NA
  • Product Category: Digital Servo Amplifier
  • Rated Line Power (S1): 4.5 kVA
  • Rated Line Voltage: 3×208 V (−10%) to 3×480 V (+10%)
  • Rated DC Bus Voltage: 290–675 VDC
  • Maximum DC Bus Link Voltage: 900 VDC
  • Rated Output Current: 6 Arms at 3×208 V / 3×230 V; 6 Arms at 3×400 V; 6 Arms at 3×480 V
  • Peak Output Current: 18 Arms
  • Safety: Single-channel STO (Safe Torque Off)
  • Onboard Communication: CANopen and EtherCAT
  • Expansion Cards: None factory-installed (Slot 1 empty in standard NA configuration)
  • Certifications: UL listed (file E217428), CE, TÜV

Functional Features

  • Multi-Loop Control: High-speed current, velocity, and position control loops
  • Autotuning: Automatic PID parameter and feedforward adjustment
  • Cogging Suppression: Minimized motor cogging for smooth operation
  • Macro Programming: IEC 61131-3 structured text with 128 KB code memory
  • Multi-Feedback Support: Up to three simultaneous feedback systems
  • Onboard Fieldbus: CANopen and EtherCAT
  • Single-Channel STO: SIL2/PLd compliant safe torque off
  • Dynamic Braking: Integrated braking circuit with standard internal braking resistor; external brake resistor supported
  • MMC Storage Card Slot: Parameter and firmware backup
  • LED Status Display: Embedded front-panel LED display
  • Configurable I/O: Digital and analog inputs/outputs

Application Scenarios

  • Heavy-Duty Automation: Large conveyor systems, heavy material handling, and high-throughput assembly lines
  • Machine Tools: High-power feed axes, spindle drives, and multi-axis CNC systems
  • Industrial Robotics: Heavy-duty robotic arms, gantry systems, and palletizing robots
  • Metal Forming: Press feeds, shearing machines, and bending equipment
  • Woodworking and Plastics: Router drives, extruder feeds, and injection molding actuators

Performance Parameters

  • Drive Type: Digital servo amplifier with IGBT power stage
  • Control Modes: Torque, speed, and position control
  • Switching Frequency: High-frequency PWM for low acoustic noise
  • Protection Features: Overcurrent, overvoltage, undervoltage, overtemperature, phase loss, short circuit, and soft start
  • Motor Overload Protection: Solid-state protection at 130% of full load current
  • Short Circuit Rating: Suitable for circuits delivering not more than 42 kA rms symmetrical amperes at max 480 VAC

Material Composition

  • Durable metal enclosure housing integrated power electronics (IGBT module with floating current measurement), control circuitry, EMC filter, and heat dissipation components

Structural Features

  • Form Factor: Compact single-channel servo amplifier
  • Mounting: Panel mounting inside control cabinets
  • Expansion Slots: Slot 1 (empty in standard NA configuration), Slot 2, and Slot 3 for optional expansion cards
  • Connectors: Power input/output terminals, motor connection terminals, feedback connector, STO inputs, and fieldbus interface
  • Shield Connections: All shield connections made directly to the amplifier

Working Principle
The S70601-NA receives three-phase AC power from the mains, rectifies it to a DC bus voltage, and drives the connected servo motor through its IGBT power stage using high-frequency PWM. The drive uses closed-loop feedback control for precise torque, speed, and position regulation. The onboard CANopen and EtherCAT interfaces enable real-time communication with the host controller. The drive also supports common DC bus link connections to distribute regenerative power between amplifiers.

Installation Requirements

  • Mount inside a closed switchgear cabinet free from conductive or corrosive materials
  • Use non-painted (conductive) mounting plates for proper EMC grounding
  • Ensure adequate clearance above and below the amplifier for unimpeded ventilation
  • Keep the ambient temperature within the permitted range (0°C to 40°C, up to 45°C with derating)
  • Connect power supply with appropriate fusing (Class RK5, CC, J, or T; max 30 A time-delay fuse)
  • Use 60°C or 75°C copper wire only; use Class 1 wire only
  • Tightening torque for field wiring terminals X0, X8, X9: 0.7–0.8 Nm (6.20–7.08 lbf·in)
  • Use shielded cables for motor and feedback connections
  • Do not mount devices producing strong magnetic fields directly beside the amplifier
