Description

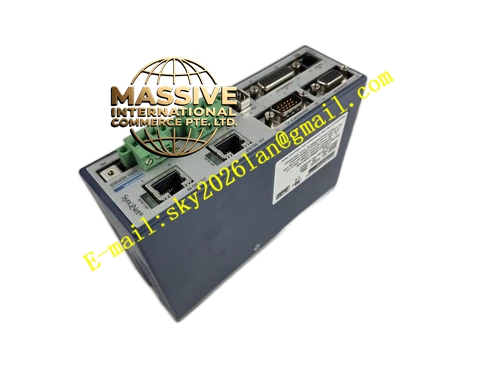

Kollmorgen S712/30-FN3
Technical Specifications:
- Input Voltage: 110–480 VAC, 1 or 3 phase, 50/60 Hz (directly from grounded supply)
- Continuous Output Current: 12A RMS per phase
- Current Loop Bandwidth: Up to 5 kHz
- Velocity Loop Bandwidth: Up to 400 Hz
- Switching Frequency: 8 kHz (up to 16 kHz available)
- Feedback Support: SFD3, Hiperface DSL, EnDat, BiSS, Resolver, SinCos, Incremental Encoder
- Fieldbus: FN3 option (PROFIBUS DP or equivalent)
- Safety: Onboard STO (Safe Torque Off) as standard
- Certifications: CE, UL, TÜV safety tested
Functional Features:
- Integrated onboard Ethernet connection for EtherCAT communication
- Onboard CANopen bus communication
- Traditional bus support including PROFINET, DeviceNet, PROFIBUS DP, SERCOS II, and RS232
- Single-cable feedback support for SFD3 and Hiperface DSL
- MMC memory card slot for parameter backup and firmware updates in the field
- Optimized resolver interface for high-accuracy commutation
- Auto-tuning function for rapid commissioning
- Cogging compensation for ultra-smooth motion
- Built-in IEC 61131 macro programming language for flexible motion control
- Onboard EMC filter and integrated power/brake resistor management for reduced cabinet size
Application Scenarios:
- Heavy-duty industrial machinery
- CNC machine tools
- Multi-axis robotic systems
- Printing and converting equipment
- Packaging machinery with complex motion profiles
- Material handling and conveyor systems
Performance Parameters:
- Speed Loop Refresh Rate: 62.5 μs (16 kHz)
- Position Loop Refresh Rate: 125 μs (8 kHz)
- Current Loop Refresh Rate: 0.67 μs (1.5 MHz)
- Maximum Feedback Evaluation Speed: Industry-leading fast feedback assessment
- Position Resolution: 28-bit position loop
Material Composition:
- Housing: Robust aluminum chassis with integrated heat sink
- Power Stage: IGBT-based three-phase inverter
- Control Board: DSP with FPGA for real-time signal processing
- Connectors: Industrial-grade locking connectors for power, motor, feedback, and fieldbus
Structural Characteristics: Panel-mount or DIN-rail mountable form factor. The drive features front-panel LED status indicators, connector access, and MMC card slot. The compact design integrates EMC filtering and braking resistor management internally.
Working Principle: The S700 series uses advanced digital servo control algorithms with nested current, velocity, and position loops. The DSP processes feedback signals from the connected encoder or SFD, calculates the required motor current, and generates PWM signals for the IGBT power stage. The fieldbus option card handles real-time communication with the host PLC or motion controller, receiving motion commands and returning status information.
Installation Requirements:
- Install in a closed control cabinet with adequate ventilation
- Maintain cabinet internal temperature below 40°C; additional cooling or ventilation is required if necessary
- Use only copper conductors for wiring; wire cross-section per IEC 60204 standard
- Connect to a grounded three-phase industrial supply network (TN system or TT system with grounded neutral)
- Symmetrical rated current of the supply network must not exceed 42 kA
- If power supply voltage asymmetry exceeds 3%, a line reactor must be used
- Periodic overvoltage between phases and drive housing must not exceed 1000V peak
- Voltage spikes between phases (less than 50 μs) must not exceed 1000V
- Voltage spikes between phase and housing (less than 50 μs) must not exceed 2000V
Usage Notes:
- The “FN3” suffix indicates a specific fieldbus option; verify the fieldbus protocol matches the host controller
- Use the MMC card to back up parameters before performing firmware updates
- The STO function is standard and must be properly wired for safety compliance
- Auto-tuning should be performed after initial motor connection to optimize loop gains
- The drive supports both rotary and linear motors; ensure the correct motor type is selected in configuration
