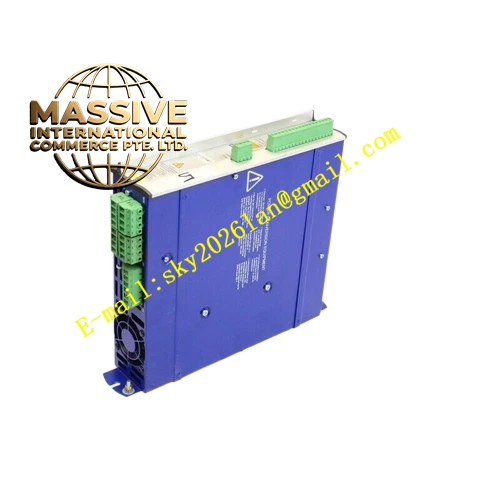

Kollmorgen S71201‑FN3
- Technical Specifications
- Input Power: 3‑phase 208‑480VAC, 50‑60Hz, grounded TN/TT industrial power grid
- Rated Continuous Output Current: 12 A RMS
- Peak Output Current: 24 A RMS (2‑second duration)
- Rated Apparent Power S1 Operation: 9 kVA
- DC‑link Voltage: 290‑675 VDC
- Auxiliary Supply: 24 VDC isolated control power
- Cooling Method: Forced air cooling (FN3 integrated controlled fan assembly)
- Protection Class: IP20
- Weight: 5.5 kg
- Functional Features
- Onboard native EtherCAT and CANopen communication; RS232 diagnostic interface built‑in
- Single‑cable feedback support for SFD3, Hiperface‑DSL, resolver, incremental encoder
- MMC memory card slot for parameter backup, cloning and firmware field upgrade
- Single‑channel STO Safe Torque‑Off safety function
- Built‑in auto‑tuning, cogging suppression, high‑speed current‑speed‑position closed‑loop control
- IEC 61131 macro programming for custom motion logic execution
- Three front‑side expansion slots for fieldbus, position I/O and safety cards
- Application Scenarios: Packaging machinery, textile equipment, robotic auxiliary axes, material handling, medium‑duty CNC auxiliary motion axes
- Performance Parameters: Current loop cycle 62.5 µs, position loop cycle 250 µs, supports electronic gearing, master‑slave synchronization, encoder emulation output
- Material Composition: Anodized aluminum alloy main housing, galvanized steel mounting bracket, FR‑4 printed circuit boards, metal‑cased power semiconductors, plastic front connector cover
- Structural Characteristics: Vertical book‑style cabinet‑mount structure; separate power section and control section; combicon power terminals, D‑Sub feedback and communication connectors; three external expansion slots on front panel; integrated fan unit for FN variant
- Working Principle: Converts 3‑phase AC mains to DC‑link bus voltage; PWM power inverter generates variable‑frequency variable‑amplitude 3‑phase AC for servo motor; real‑time feedback from motor encoder feeds position/speed data back to DSP controller to close current‑speed‑position loops; STO hardware cuts power output for safety‑related stop eventsKollmorgen.
- Installation Requirements: Vertical upright mounting inside IP54‑rated control cabinet; maintain clearance above and below unit for airflow; mounting surface must be conductive metal plate for EMC grounding; ambient operating temperature 0‑45 °C; altitude ≤1000 m without derating; 1.5 % performance derating per additional 100 m above 1000 m.
