Description

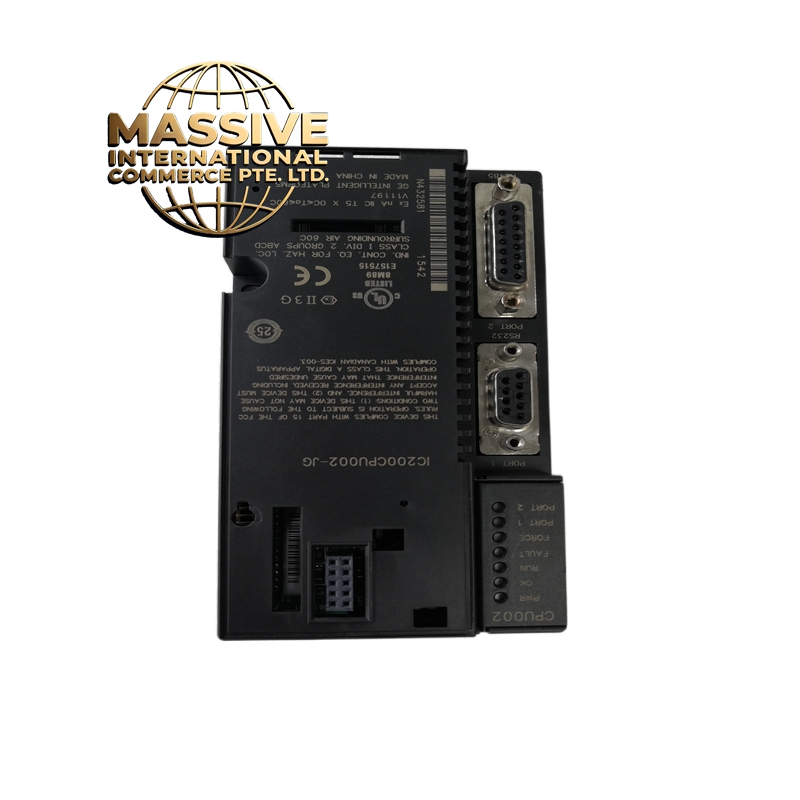

GE IC200CPU002 Technical Specifications:
- Processor: 32-bit RISC processor
- Program Memory: 256KB (expandable to 512KB with option)
- Data Memory: 128KB RAM (battery-backed for retentivity)
- I/O Capacity: Up to 128 points (with expansion modules)
- Scan Time: 0.5 microseconds per 1K instructions (typical)
- Communication Ports: RS-232 (programming), RS-485 (peer-to-peer), optional Ethernet
- Programming Software: Proficy Machine Edition / CIMPLICITY
- Power Supply: 5V DC from backplane
- Current Draw: 800mA (typical)
- Operating Temperature: 0°C to 60°C
- Retentive Memory: Battery-backed RAM retains program and data for up to 10 years
Functional Features:
- Supports ladder logic, function block diagram, structured text, and sequential function chart
- Built-in real-time clock with battery backup
- Data logging capability with timestamp
- Password protection for program security
- Supports up to 8 communication connections simultaneously
- Hot-swappable CPU — program runs from backup during swap
Application Scenarios:
- Small Machines: Packaging machines, conveyor systems, simple assembly lines
- Building Automation: HVAC control, lighting control, elevator sequencing
- Water/Wastewater: Pump station control, valve sequencing
- Machine Retrofit: Replacing older relay logic with modern PLC control
Performance Parameters:
| Parameter | Value |
|---|---|
| Processor | 32-bit RISC |
| Program Memory | 256KB |
| Data Memory | 128KB RAM |
| Scan Speed | 0.5μs/K instructions |
| I/O Points | Up to 128 |
| Comms | RS-232, RS-485, optional Ethernet |
| Power | 5V DC, 800mA |
| Retentivity | Battery-backed, 10 years |
Material Composition:
- PCB: Multi-layer FR-4, 6-layer design for signal integrity
- Connector: High-density edge connector, gold-plated
- Battery: CR2032 lithium coin cell for memory retentivity
- Housing: ABS plastic, UL listed
Working Principle: The CPU continuously scans the user program in a cyclic manner. During each scan cycle, it reads all input states, executes the logic program, and writes all output states. The scan time is deterministic and typically under 10ms for moderate-sized programs. Communication tasks are handled via interrupt-driven routines, ensuring real-time data exchange with HMI panels, SCADA systems, and other PLCs. Installation Requirements:
- Install in slot 0 of the IC200 chassis (CPU must be in the leftmost slot)
- Requires IC200PWR102B or equivalent power supply in the same chassis
- Connect programming port (RS-232) to a PC running Proficy Machine Edition
- For Ethernet communication, install IC200CMM002 communication module
Usage Notes:
- Never remove the CPU while the PLC is running unless using hot-swap procedure
- Replace the battery every 5 years even if the PLC is powered — the battery degrades over time
- Keep a backup of the program on a USB drive or network share
- Do not exceed 128 total I/O points without using expansion chassis
