Description

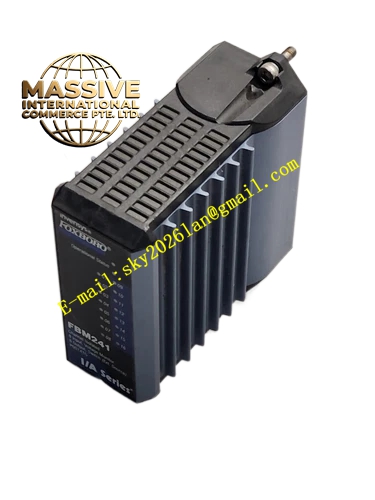

Foxboro FBM241B P0914WK
Technical Specifications
- Input Type: Voltage Monitor (8 channels, Internal Source)
- Output Type: Discrete Output (8 channels)
- Hardware Code: P0914WK
- Communication Protocol: Redundant 2 Mbps Module Fieldbus
Key Features
- Internal Power Sourcing: Simplifies field wiring by providing the necessary voltage for monitor inputs directly from the module/backplane.
- Mixed I/O Design: Combines status monitoring and discrete control in a single, space-saving footprint.
- Hot-Swappable Maintenance: Supports safe online replacement to minimize unplanned downtime.
- Integrated Diagnostics: Provides comprehensive channel-level health reporting.
Application Scenarios
Perfect for applications where providing external power for status monitoring is impractical, such as in remote valve monitoring or legacy equipment integration.
Performance Parameters
- Operating Temperature: 0°C to 60°C
- Protection Rating: IP20
- Power Supply: 24 VDC backplane supply
Material Composition
Features a robust industrial enclosure with conformal-coated internal circuitry to resist harsh industrial atmospheres.
Structural Characteristics
Standard 200 Series FBM single-width design. Connects to the backplane via a secure rear interface and utilizes a designated Terminal Assembly for field wiring.
Operating Principle
Supplies internal voltage to the 8 monitor input channels to sense field device status. It concurrently processes discrete control commands to drive the 8 output relays, all while communicating over the redundant Module Fieldbus.
Installation Requirements
Install on a Foxboro 200 Series baseplate. Ensure the backplane can supply sufficient current for both the module and the internal voltage sourcing.
Usage Precautions
Do not connect external voltage sources to the internally powered monitor inputs. Verify that the total internal power draw does not exceed module specifications. Follow standard ESD handling procedures.
