Description

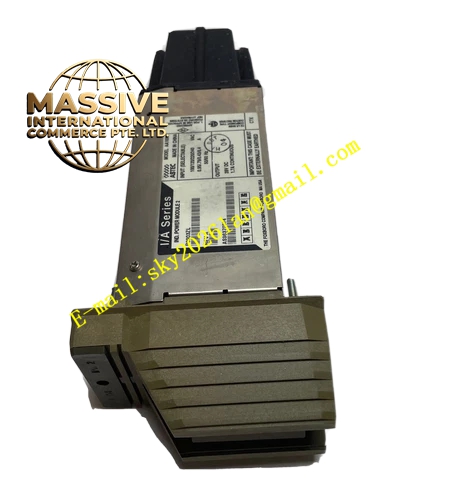

Foxboro P0903ZL
Technical Specifications
- Processor: 32-bit RISC processor.
- Instruction Execution: 0.1 microseconds/boolean instruction, 0.5 microseconds/floating-point instruction.
- Memory: 8MB program memory, 4MB data memory.
- Communication: Ethernet 10/100BaseTX, ControlNet, RS-232.
Functional Features
- Massive I/O Support: Accommodates expansion of up to 128 FBM modules.
- Multi-Protocol Support: Compatible with mainstream industrial protocols including Modbus TCP/IP and Ethernet/IP.
- Seamless Fault Tolerance: Dual-module parallel architecture ensures bumpless primary/backup switching.
- Real-Time Monitoring: Continuously acquires process variables and handles alarm processing.
Application Scenarios
Widely deployed in the automation control systems of large-scale chemical plants, oil refineries, and power generation facilities.
Performance Parameters
- Power Supply: 24VDC, 10W power consumption.
- Environmental Adaptability: Certified for G3-class harsh environments.
- Protection Rating: IP20.
Material Composition
Enclosed in a die-cast aluminum housing with triple-coated internal circuit boards to ensure long-term operational stability.
Structural Characteristics
- Dimensions: 140mm × 165mm × 45mm.
- Weight: 0.6kg.
- Mounting: Standard rack installation.
Working Principle
Acquires field data via a high-speed bus, performs logic and regulation computations using built-in algorithms, dispatches control commands to actuators, and communicates with upper-level computers via Ethernet.
Installation Requirements
- Ensure the rack is properly grounded.
- Avoid direct sunlight exposure and proximity to high-temperature heat sources.
- Secure all wiring firmly to prevent loosening over time.
Usage Precautions
- Strictly prohibit hot-plugging modules.
- Regularly clean control cabinet filters to guarantee adequate heat dissipation.
- Promptly record alarm codes during faults to facilitate troubleshooting.
