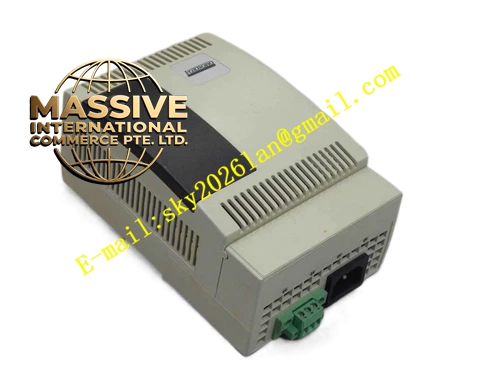

Foxboro P0940DH
Technical Specifications
- Module Type: P0940DH
- Supported Protocols: Modbus TCP/IP, Ethernet/IP, OPC
- Data Rate: 100Mbps Ethernet
- Bus Interface: 2 Mbps redundant HDLC fieldbus
Functional Features
- Multi-Protocol Support: Translates between Foxboro proprietary protocols and standard industrial protocols.
- Third-Party Integration: Enables connectivity with PLCs, HMIs, and enterprise systems from other vendors.
- Configurable Mapping: Flexible data mapping between I/A Series tags and external protocol addresses.
- Diagnostic Tools: Built-in protocol analyzers and connection status monitoring.
Application Scenarios
Used to integrate I/A Series systems with existing plant networks, third-party controllers, and MES/ERP systems.
Performance Parameters
- Operating Temperature: 0℃ to 60℃
- Ingress Protection: IP20
- Concurrent Connections: Supports multiple simultaneous protocol sessions.
Material Composition
Industrial enclosure with high-performance protocol processing chips and standard Ethernet interface components.
Structural Characteristics
Standard FBM form factor with RJ45 Ethernet port and configuration DIP switches. Supports hot-swappable installation.
Working Principle
Acts as a protocol bridge, reading data from the I/A Series fieldbus, translating it to the target protocol format, and transmitting it over Ethernet while performing reverse translation for incoming commands.
Installation Requirements
Install on a compatible baseplate. Configure IP addresses and protocol parameters via the system engineering tool.
Usage Precautions
Verify protocol compatibility and configuration parameters before commissioning. Ensure network security measures are in place for external connections.
