GE 151X1233DB02SA02
- Technical Specifications:
- Operating Voltage: Typical 400 V DC (adaptable down to 200 V DC)
- Communication Interfaces: CANopen, Profinet, Modbus
- Operating Temperature: -40°C to +85°C
- Protection Rating: IP54 (when installed inside hub cabinet)
- Weight: Approximately 3.2 kg
- Functional Features: High-precision closed-loop servo control achieving ±0.08° positioning accuracy; integrated brake chopper for emergency feathering; dual-redundant communication buses; built-in DSP for real-time processing; event logging for diagnostics.
- Application Scenarios: Wind turbine hub pitch control cabinets, renewable energy generation systems requiring active blade management, offshore and onshore wind farms.
- Performance Parameters: Response time ≤ 8 ms; MTBF ≥ 850,000 hours; compatible with GE Mark VIe turbine control systems.
- Material Composition: Industrial-grade multilayer PCB with conformal coating; aluminum heat sink housing; vibration-damped connector interfaces; potting compound for high-vibration zones.

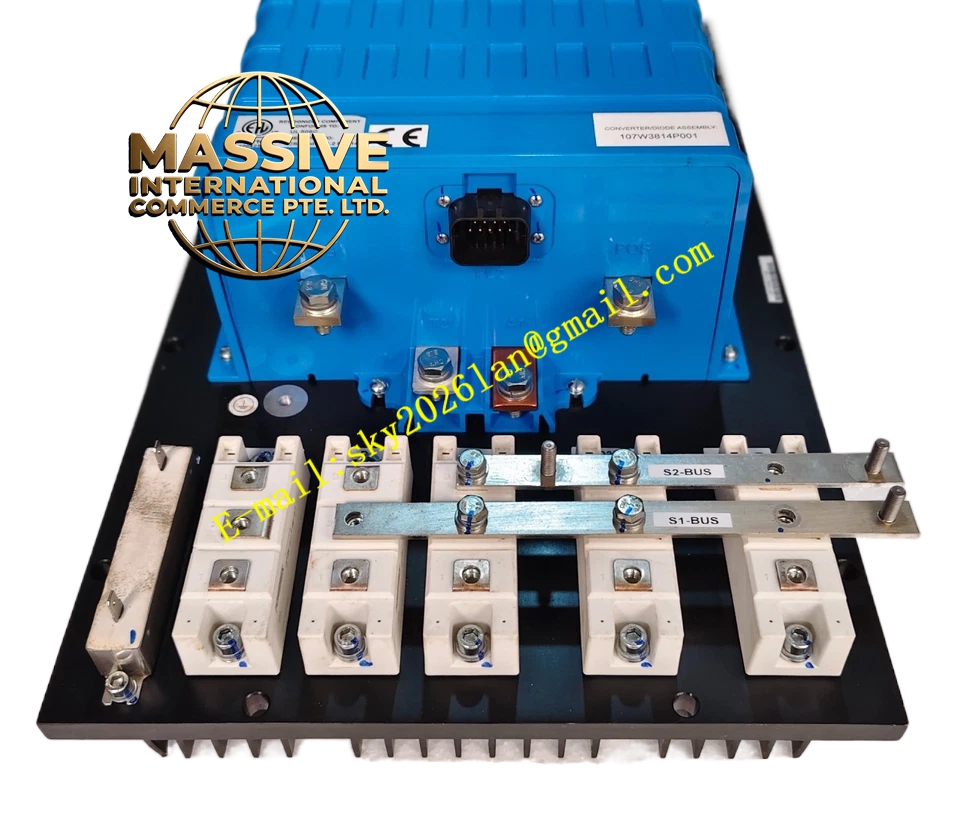

- Structural Features: Often referred to as a “blue box” unit; sealed enclosure for dust/moisture resistance; front-facing status LEDs; heavy-duty circular connectors for power and data; DIN-rail or bolt-down mounting points.
- Working Principle: Receives blade angle commands from the turbine master controller via industrial bus, processes feedback from encoder/resolver, drives the pitch motor via PWM inverter technology, and adjusts DC link voltage to control motor torque and speed.
- Installation Requirements: Mount securely inside the rotating hub control cabinet using specified hardware; ensure proper grounding of the metal enclosure; route communication cables separately from high-power lines to avoid EMI.
- Usage Precautions: Verify DC link polarity before connection to prevent irreversible damage; inspect conformal coating integrity annually in high-humidity environments; ensure cooling airflow is unobstructed around the heatsink.
