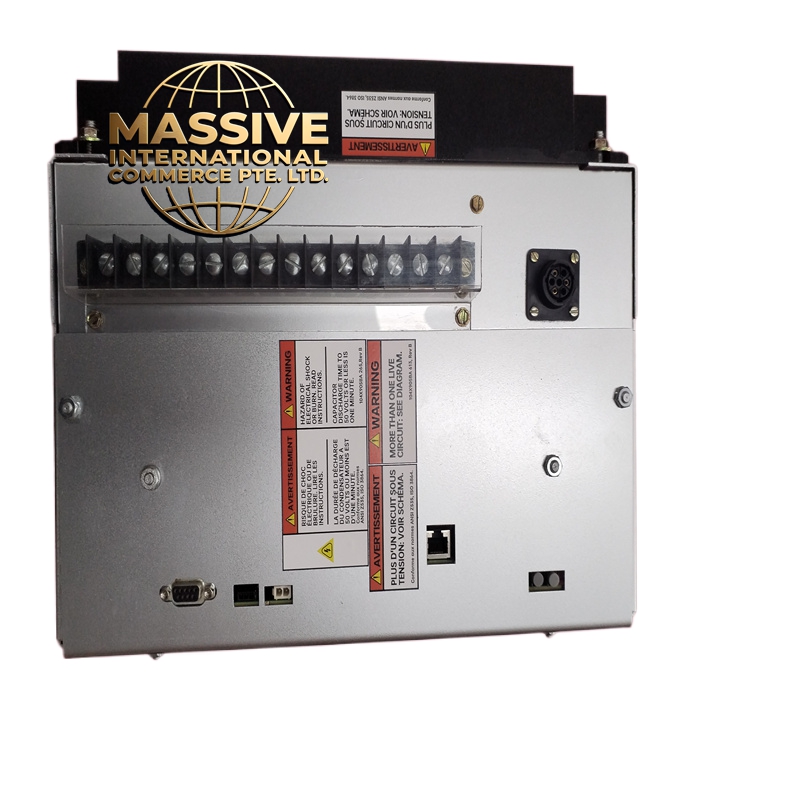

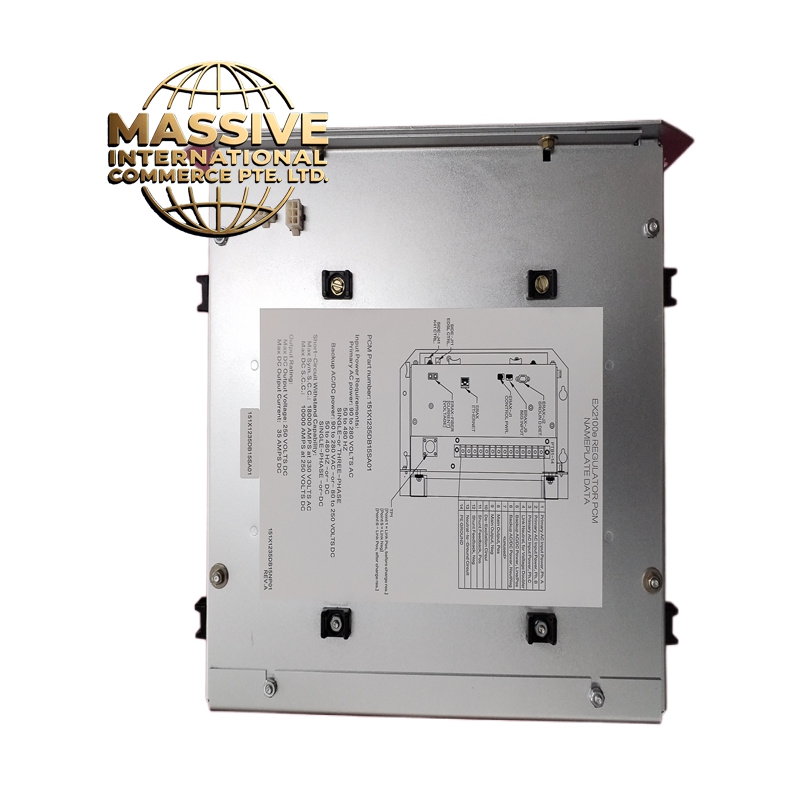

Product Overview: The 151X1235DB15SA01 is a sophisticated circuit board designed for GE’s Mark VI control system architecture, specifically functioning as an EX2100E Excitation Regulator Power Conversion Module. This board is engineered for harsh industrial environments and serves as a critical component in turbine generator excitation control systems. It features a 32-bit processing architecture optimized for complex data processing tasks and real-time control applications. The board is designed to maintain operational continuity in critical power generation applications through state-of-the-art technology and robust construction

Request Quote
Category: SKU: GE 151X1235DB15SA01

Description

GE 151X1235DB15SA01

Technical Specifications:

Parameter Specification
Series Mark VI Control System
Power Supply 24VDC ±10%
Power Consumption 50W
Communication Interface RS-485 with Modbus RTU / Ethernet dual protocol support
Operating Temperature Range -40°C to +70°C
Protection Rating IP54
Certification CE, UL Class 1 Division 2
Dimensions 178mm × 140mm × 50mm
Weight 0.5kg
Mounting Method Panel Mount
Processing Architecture 32-bit
Connector Type DB15 connector

Functional Features:

  • High-Speed Serial Link (HSSL) Interface: Interconnects with associated I/O terminal boards via high-speed serial communication

  • Power Conversion Capability: Manages input sections including three-phase diode bridge with input filter

  • Wide Input Voltage Range: Accepts primary AC input from 90 to 280 V rms nominal (35A systems) and up to 480 V rms (120A systems)

  • AC Input Frequency: 480 Hz maximum, supplied in single or three-phase from permanent magnet generator (PMG), auxiliary bus, or generator terminals

  • Secondary DC Power Input: Accepts 125 to 250 V DC from battery bank as backup power source with diode isolation

  • IGBT Output Section: Uses Insulated Gate Bipolar Transistors for pulse width modulation with approximately 1,000 Hz chopping frequency

  • Dynamic Discharge Circuit: Limits DC link voltage during load rejection or unit tripping events

  • Output Regulation: Provides continuous DC output up to 100% of rated value with temporary forcing capability up to 210%

Structural Characteristics:

  • Compact yet powerful design optimized for industrial environments
  • Robust build quality with durable construction for longevity and minimal downtime
  • Versatile connectivity options including DB15 connector for easy system integration
  • Comprehensive compatibility with major operating systems for seamless industrial control software integration

Applications:

  • Power generation systems
  • Turbine generator excitation control
  • Manufacturing process control
  • Industrial automation systems
  • Critical infrastructure control applications

Installation Requirements:

  • Panel mount installation in controlled environment
  • Proper grounding using tinned copper braided shielding cable (minimum 96 strands of 34 AWG, Belden 8660 or equivalent)
  • Connection directly to ground bus using shortest practical path
  • External protective device (switch or circuit breaker) must be installed near equipment

Operating Conditions:

  • Designed for harsh industrial environments with wide temperature tolerance
  • Suitable for diverse geographical locations due to extended temperature range specifications
  • IP54 protection against dust and water ingress
