Description

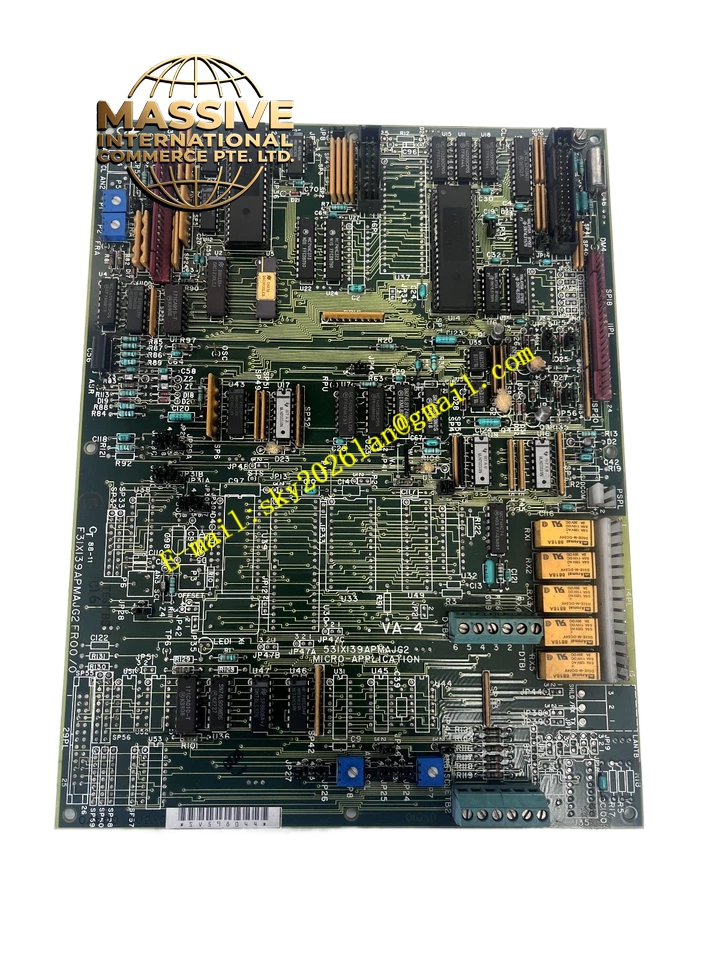

GE 531X139APMAJG2
Technical Specifications
- Input Type: Analog (4-20mA, 0-10V, RTD, Thermocouple).
- Channels: Multiple isolated analog input channels.
- Resolution: High-resolution analog-to-digital conversion.
Functional Features
- Signal Conditioning: Filters noise and scales raw sensor signals to digital values.
- Isolation: Channel-to-channel and channel-to-ground isolation to prevent ground loops.
- Diagnostics: Detects open circuits, short circuits, and out-of-range signals.
Application Scenarios
Deployed in process control systems for monitoring temperature, pressure, flow, and level.
Performance Parameters
- Accuracy: High-precision measurement with low drift.
- Update Rate: Fast scanning rate for dynamic process control.
Material Composition
- PCB: Standard industrial control board.
- Components: Precision operational amplifiers and ADCs.
Structural Characteristics
- Form Factor: Standard rack-mountable I/O card.
- Termination: Front or rear terminal blocks for field wiring.
Working Principle
Accepts raw analog signals from field devices, conditions and filters them, converts them to digital values via an ADC, and transmits the data to the PLC/DCS via the backplane.
Installation Requirements
- Use shielded twisted-pair cables for analog signals.
- Ground shields at one end only to prevent ground loops.
Usage Precautions
- Verify signal type and range before connecting field devices.
- Avoid routing analog cables parallel to high-voltage power cables.
