Description

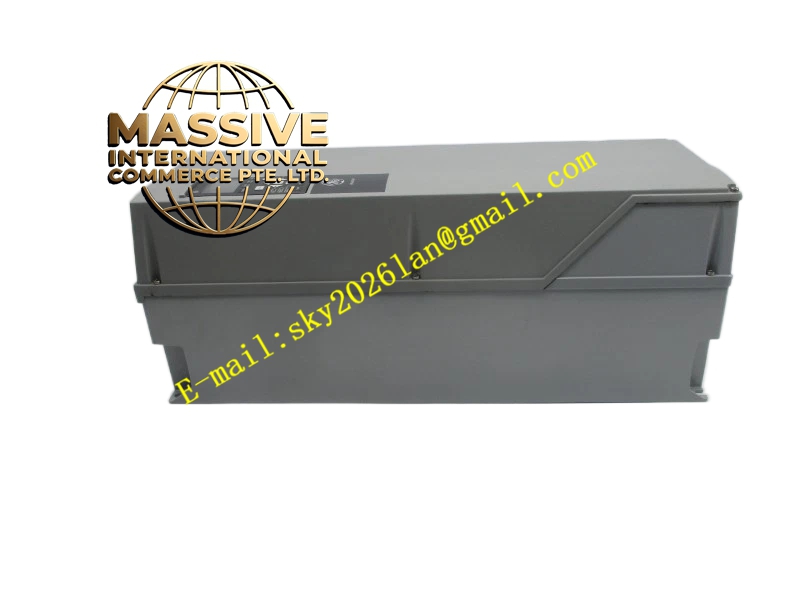

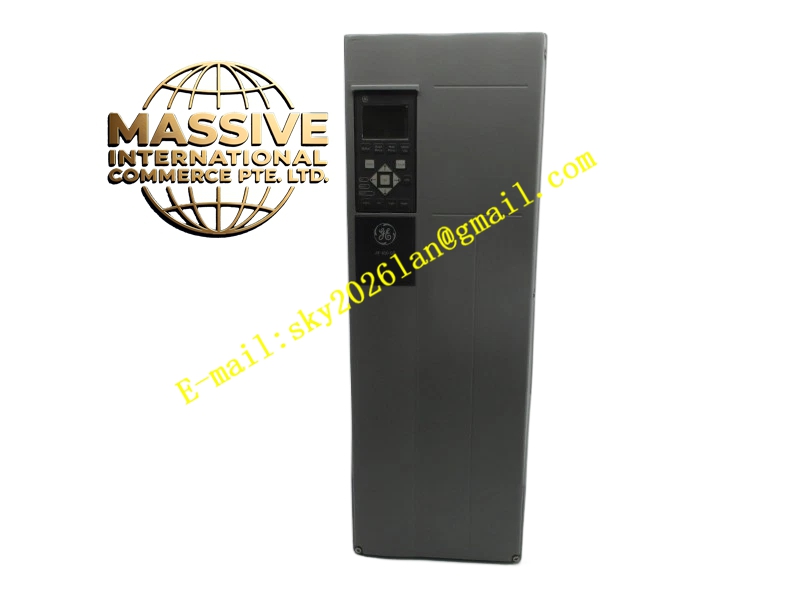

GE 6KGP43030X4XXXA1
Technical Specifications
- Product Type: AC Variable Frequency Drive.
- Series: GE AF-600 GP.
- Power Rating: Corresponds to the specific horsepower/kW rating in the part number.
- Input/Output Voltage: Typically 3-phase 380-480V AC.
Functional Features
- Sensorless Vector Control: Provides high torque at low speeds without encoder feedback.
- Built-in EMC Filter: Reduces electromagnetic interference for cleaner operation.
- Flexible Communication: Supports multiple fieldbus protocols via optional cards.
- User-Friendly Interface: Intuitive keypad for parameter setup and monitoring.
Application Scenarios
- Pumps and Fans: Variable flow control for energy efficiency.
- Conveyors: Precise speed synchronization in material handling.
- Mixers and Extruders: Torque control in process industries.
Performance Parameters
- Overload Capacity: Typically 150% for 60 seconds, 180% for 3 seconds.
- Speed Range: Wide speed range with stable torque output.
Material Composition
- Enclosure: Robust metal housing with IP20/IP54 options.
- Power Electronics: IGBT modules and aluminum electrolytic capacitors.
Structural Characteristics
- Design: Compact, bookshelf or wall-mount design.
- Cooling: Forced-air cooling with protected fan compartment.
Working Principle
The drive rectifies incoming AC power to DC, then uses an inverter section with IGBTs to synthesize a variable frequency and voltage AC waveform to precisely control motor speed and torque.
