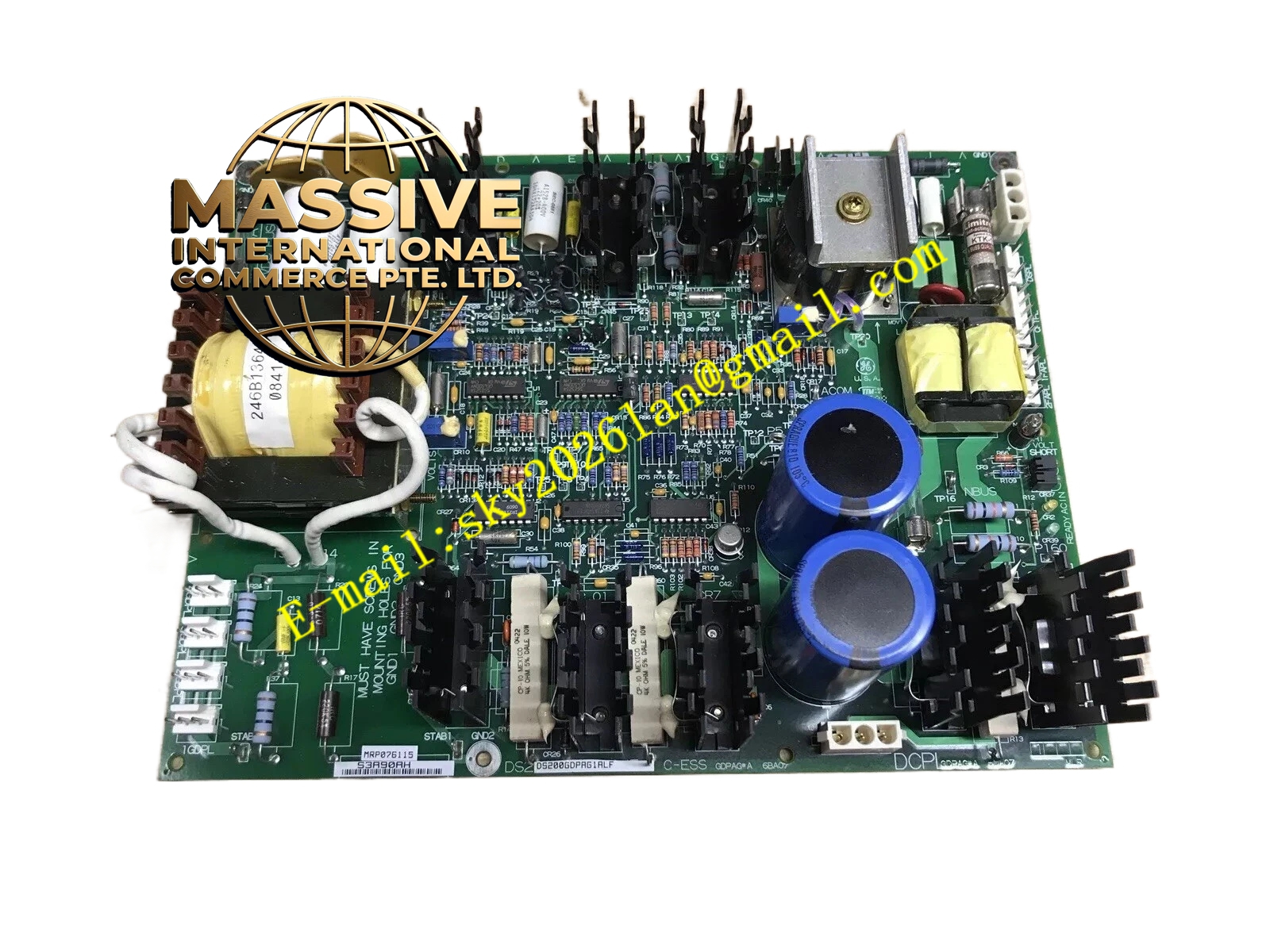

GE DS200GDPAG1A
Technical Specifications
- Part Number: DS200GDPAG1A
- Manufacturer: General Electric
- Series: Mark V Speedtronic
- Product Type: Gate Driver Power Supply Board (GDPA)
- Output Power: 600-700 W
- Input Voltage (AC): 80-132 V AC
- Input Voltage (DC): 105-140 V DC
- Output Features: 120 V DC supply; 50 V AC transformer
- Inverter Frequency: Approximately 27 kHz
- Protection Circuits: Overcurrent, overvoltage, undervoltage
- Isolation: Fully isolated inputs
- Indicators: 4 LEDs + 2 neon indicators
- Operating Temperature: -20°C to +50°C
- Weight: Approximately 0.9-1.0 kg
- Status: Obsolete model with limited stock available
Key Features
- 600-700 W output power capacity
- Dual AC/DC input capability for operational flexibility
- 27 kHz inverter technology for efficient power conversion
- Full input isolation for safety and noise immunity
- Comprehensive protection circuits (overcurrent, overvoltage, undervoltage)
- Multiple LED and neon indicators for status monitoring
- Single PCB integration of rectification, filtering, and regulation
- Stable voltage delivery under fluctuating plant conditions
Application Scenarios SCR/IGBT gate driver power supplies, excitation system controls, turbine drive systems, industrial power conversion equipment, motor drive applications, generator field supply systems
Performance Parameters
- Output Power: 600-700 W
- AC Input Range: 80-132 V AC
- DC Input Range: 105-140 V DC
- DC Output: 120 V DC
- AC Output: 50 V AC transformer
- Inverter Frequency: ~27 kHz
- Operating Temperature: -20°C to +50°C
Material Composition High-quality power electronic components mounted on a robust printed circuit board. The board features heavy-duty power semiconductors, filtering capacitors, and magnetics designed for continuous operation at rated power. Components are selected for reliable operation in industrial power environments.
