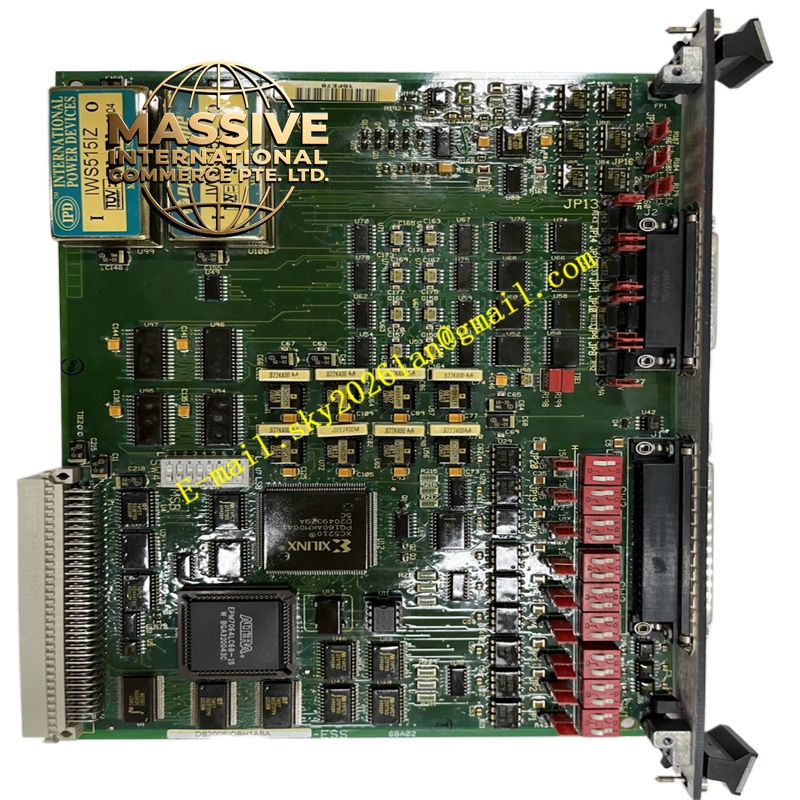

GE DS200SLCCG2AHH
Technical Specifications
- Board Type: LAN Communication Interface Card
- Series Compatibility: GE Mark V / Mark VI
- Network Protocols: ARCNET and DLAN
- Memory: Dual EPROM memory cassettes for storing LCP programming data, plus dual-port RAM.
Functional Features
- Provides isolated and non-isolated circuits for host driver communication.
- Filters incoming signals through an integrated LAN Control Processor (LCP).
- Supports diagnostic access and system settings via an optional 16-key alphanumeric programmer.
Application Scenarios
Deployed in GE excitation systems and drive control cabinets to facilitate robust, high-speed communication between local controllers and the central plant network.
Performance Parameters
- High-speed data transmission with minimal latency.
- Advanced signal filtering to prevent network interference.
Material Composition
Industrial-grade printed circuit board (PCB) with protective conformal coating to withstand harsh power plant environments.
Structural Characteristics
Standard rack-mountable form factor featuring EPROM cassettes, diagnostic LEDs, and specialized network connectors.
Working Principle
Acquires communication requests from the host driver, processes and filters them via the LCP, and transmits the data across the ARCNET or DLAN network while maintaining electrical isolation.
Installation Requirements
- Must be installed by qualified personnel in accordance with GE installation manuals.
- Ensure proper seating on the backplane to guarantee network connectivity.
Usage Precautions
- Strictly observe Electrostatic Discharge (ESD) protocols during handling.
- Ensure the board is packaged in anti-static protection prior to installation.
