Description

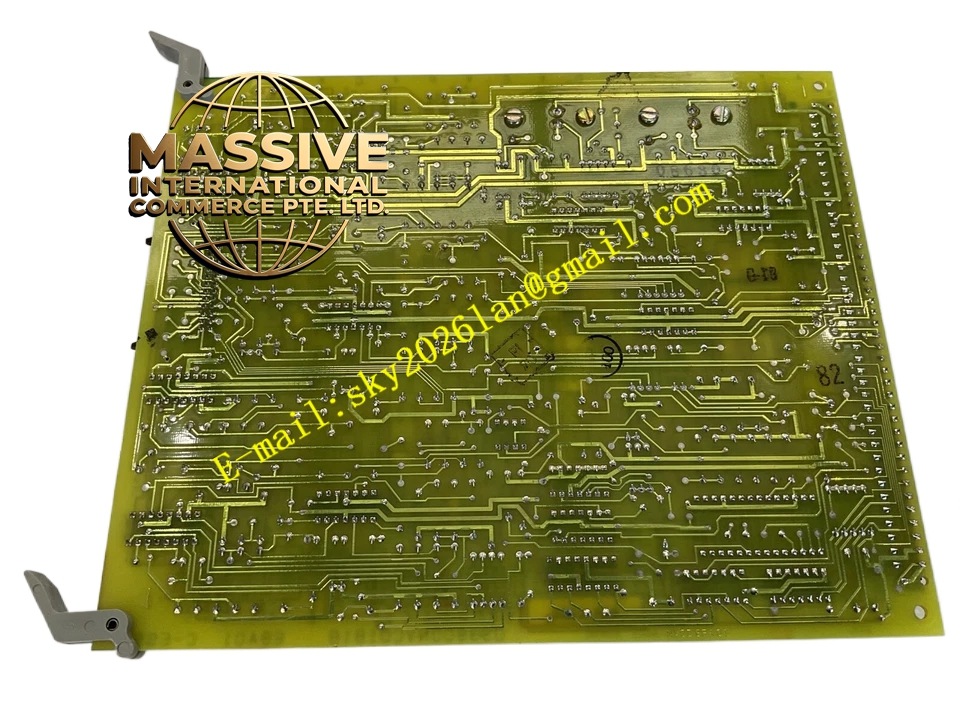

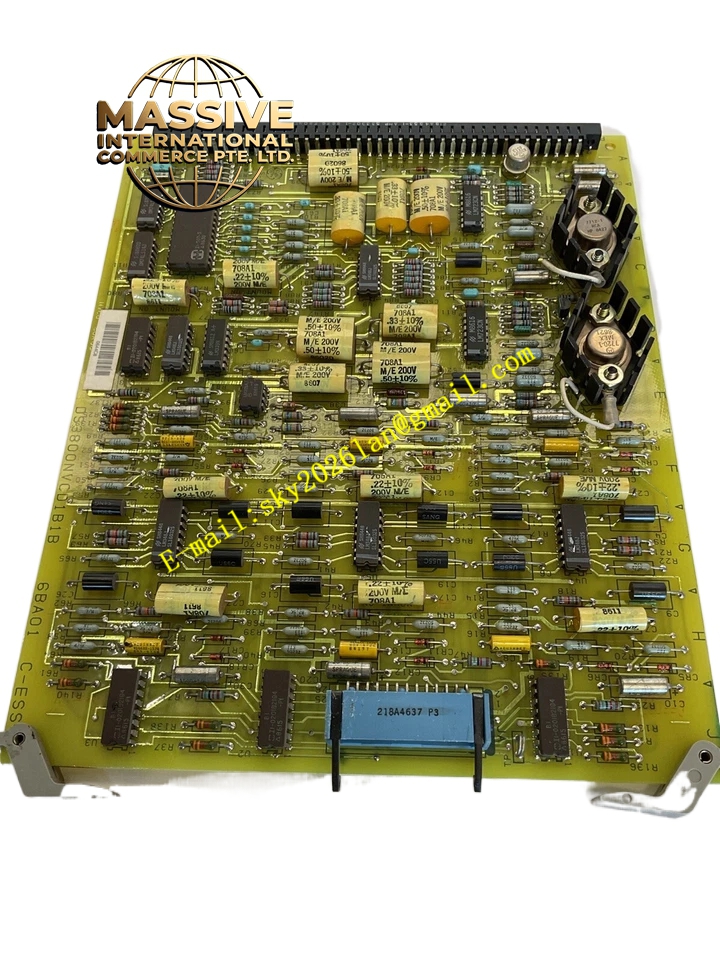

GE DS3800HCMC1A1B
Technical Specifications:
- Brand: General Electric (GE)
- Model: DS3800HCMC1A1B
- Product Type: Memory/Control Board
- System Compatibility: GE Series 90-70 PLC Systems
Functional Features:
- Expanded Memory: Provides ample storage for large-scale logic programs and data tables.
- Enhanced Processing: Supports complex mathematical operations and high-speed counting.
- Data Retention: Ensures critical process data is maintained during power cycles.
Application Scenarios:
Deployed in large-scale manufacturing, water treatment, and material handling systems requiring extensive logic and data storage.
Performance Parameters:
- Memory Capacity: High-capacity RAM and non-volatile memory.
- Processing Speed: Fast logic execution for high-speed applications.
Material Composition:
Industrial-grade PCB with battery-backed memory retention and high-quality components.
Structural Characteristics:
Standard Series 90-70 module form factor with secure backplane connections and battery holder.
Working Principle:
Stores and executes the PLC program, manages data tables, and communicates with the CPU and I/O modules to control the automation process.
Installation Requirements:
Install in the designated CPU or expansion slot. Ensure the memory retention battery is properly installed and charged.
Usage Precautions:
Replace the memory battery promptly when low-battery indicators appear to prevent program loss. Handle with ESD precautions.
