Description

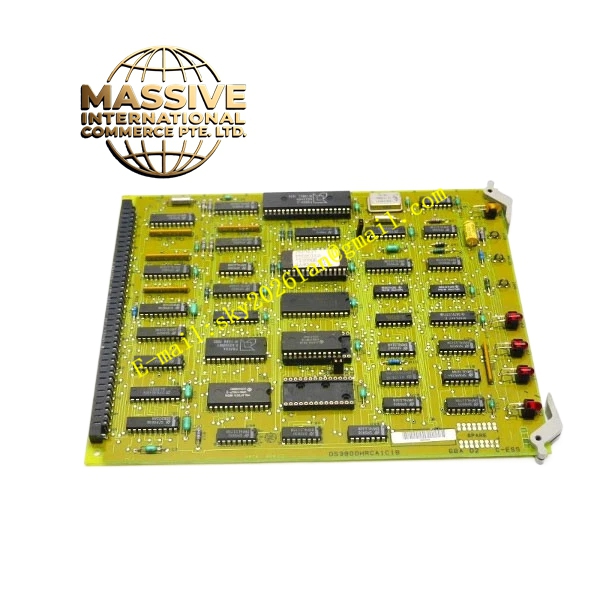

GE DS3800HRCA1C1B
Technical Specifications
- Manufacturer: General Electric (GE)
- Product Type: RST Analog I/O Board
- Series: Mark V
- Country of Origin: United States
Functional Features
- Signal Conditioning: Scales and conditions analog signals from I/O cores R1, R2, and R3.
- Versatile Input/Output Support: Handles LVDT, servo valve, thermocouple, 4-20 mA, vibration, relay driver, pulse, and voltage signals.
- Core Interconnectivity: Transmits signals via 3PL connector to COREBUS and communicates generator/line signals via JE connector.
- Power Distribution: Receives power from TCPS board via 2PL connector.
Application Scenarios
- Gas Turbine Control: Essential for monitoring and regulating gas turbine operations.
- Industrial Automation: Used in heavy industrial environments requiring precise analog signal processing.
Performance Parameters
- Signal Types: Supports multiple analog signal types including LVDT, servo valve, and 4-20 mA.
- Connectivity: 3PL, JE, and 2PL connectors for data and power.
Material Composition
- Constructed with industrial-grade electronic components for high reliability in demanding environments.
Structural Characteristics
- Form Factor: Mark V series analog I/O board for rack mounting.
- Connectors: 2PL, 3PL, and JE connectors for system integration.
Working Principle
Reads raw analog signals from terminal boards, conditions them, and transmits via the 3PL data bus to the COREBUS while facilitating bidirectional communication for generator and line signals.
Installation Requirements
- Must be properly seated in a compatible Mark V rack.
- Requires correct connections to TCPS, STCA/TCQE, and TCQC boards.
Usage Precautions
- Verify compatibility with Mark V system configuration before installation.
- Regularly inspect connectors and signal integrity.
