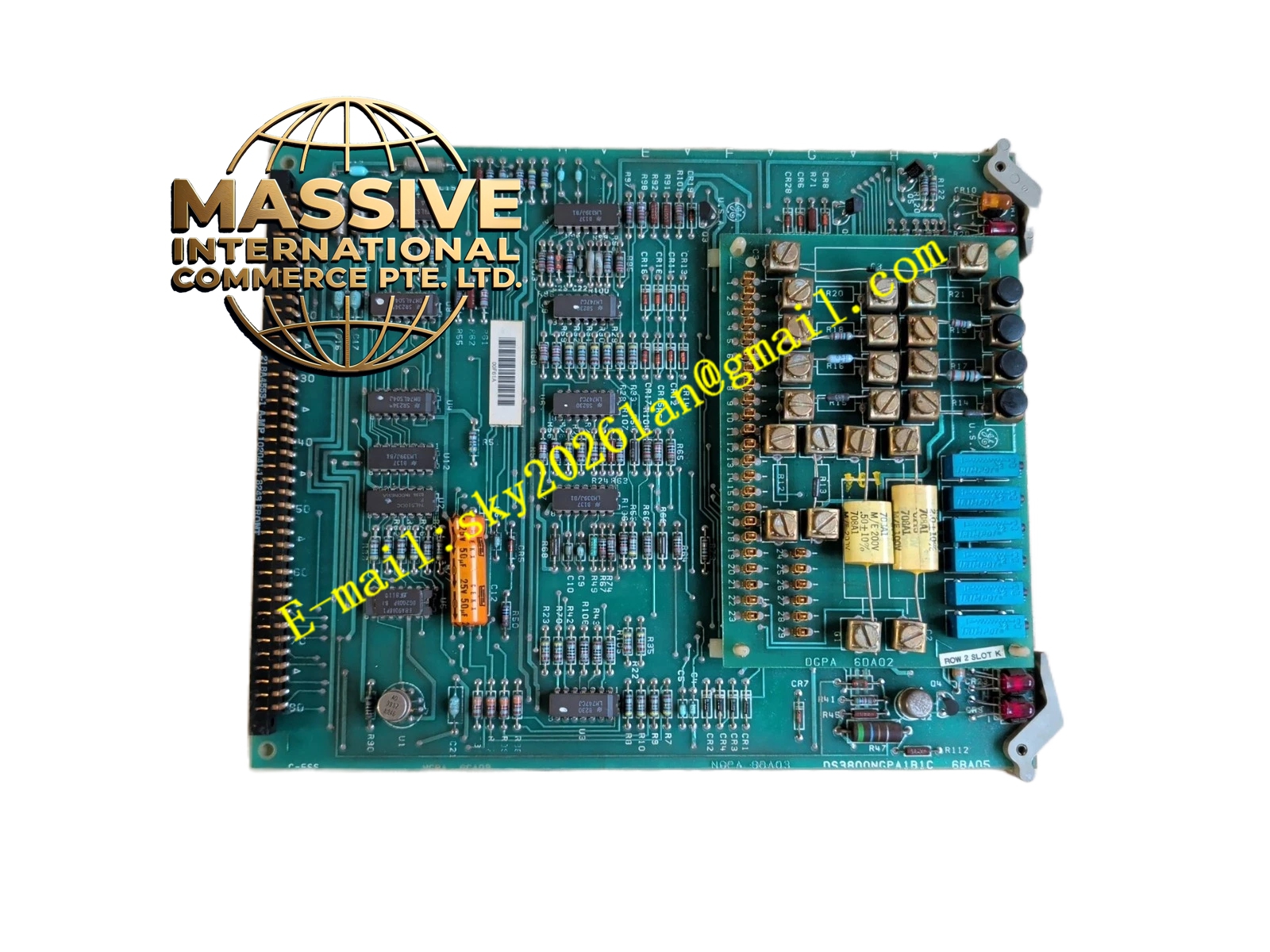

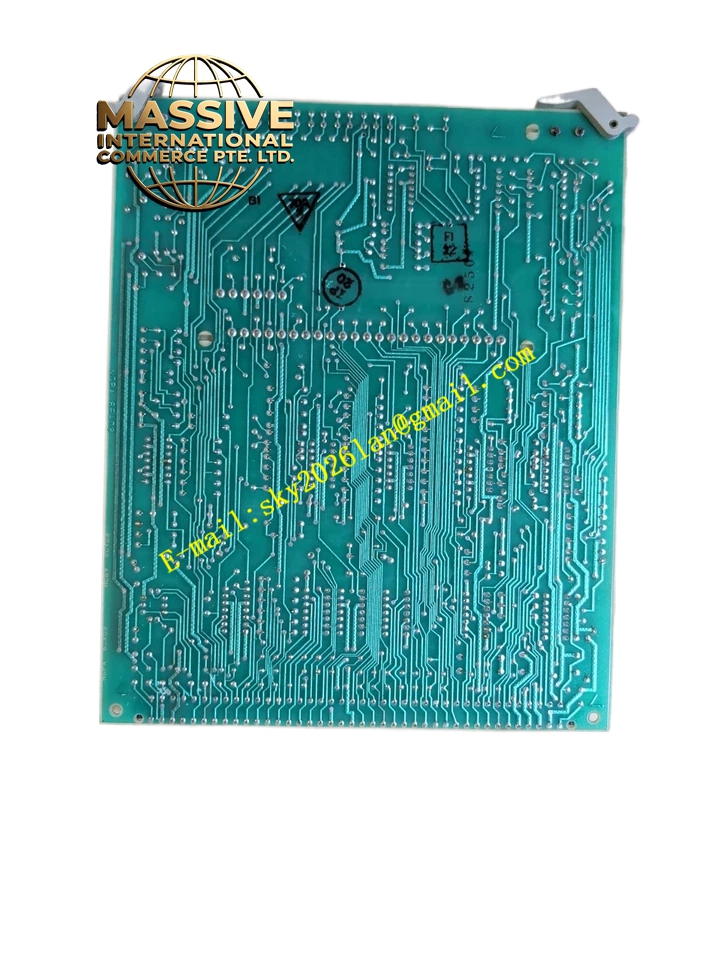

GE DS3800NGPA1B1C
Technical Specifications:
- Brand: General Electric (GE)
- Model: DS3800NGPA1B1C
- Product Type: Gas Turbine Logic / Control Board
- System Platform: Series 90-30 / Mark IV
Functional Features:
- Sequence Execution: Manages complex startup, synchronization, and normal operating sequences.
- Interlock Management: Enforces critical safety interlocks to prevent unsafe turbine operating conditions.
- Data Aggregation: Collects status from distributed I/O and reports to the central HMI.
Application Scenarios:
Deployed in older industrial gas turbines and mechanical drive applications requiring reliable, proven control logic.
Performance Parameters:
- Deterministic Response: Hardwired and programmed logic ensures predictable and fast safety responses.
- Stability: Designed for decades of continuous operation in harsh industrial environments.
Material Composition:
Industrial-grade integrated circuits, discrete logic components, and protective PCB coatings.
Structural Characteristics:
Standard rack-mountable board with DIN-rail or backplane connectors, DIP switches, and diagnostic LEDs.
Working Principle:
Executes programmed ladder logic or hardwired relay logic to monitor turbine parameters and command actuators, valves, and breakers.
Installation Requirements:
Ensure the backplane slot matches the board’s configuration. Verify all address switches are set correctly to prevent bus conflicts.
Usage Precautions:
Always maintain a backup of the system logic program. Handle with ESD protection to prevent damage to sensitive CMOS components.
