Description

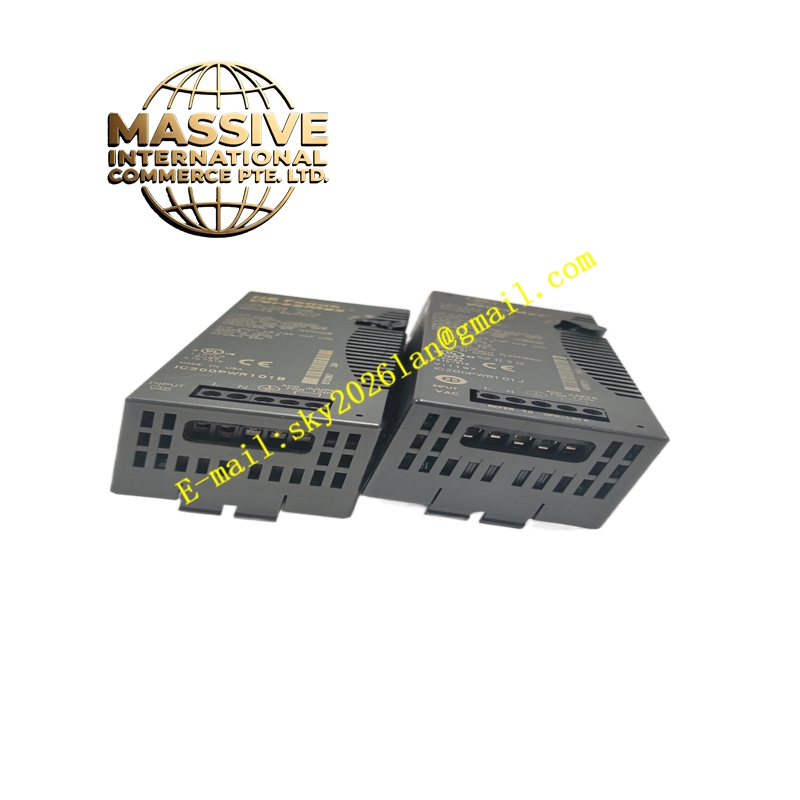

GE IC200PWR101E Technical Specifications:
- System: VersaMax Nano.
- Input: 120/240V AC.
- Output: 5V DC and 3.3V DC.
- Form Factor: Ultra-compact Nano footprint.
Functional Features:
- Space-Saving Design: Minimizes panel footprint for Nano applications.
- Integrated Protection: Comprehensive internal protection circuitry.
- Easy Installation: Tool-less DIN rail mounting option.
Application Scenarios:
- Small packaging machines.
- Conveyor belt controls.
- Remote telemetry and monitoring stations.
Performance Parameters:
- Efficiency: Optimized for low standby power consumption.
- Response Time: Fast transient response to sudden load changes.
- Isolation: High dielectric isolation between input and output.
Material Composition & Structural Characteristics:
- Enclosure: Sleek, compact industrial housing.
- PCB: High-density layout to fit Nano dimensions.
- Terminals: Spring-clamp or screw terminals depending on specific revision.
Working Principle: Operates as a compact switch-mode power supply, converting AC to regulated DC. It feeds both the 5V logic bus and the 3.3V bus required by modern Nano microprocessors.
Installation Requirements:
- Placement: Leftmost position in the Nano stack.
- Wiring: Follow standard wiring practices for AC mains.
- Grounding: Essential for noise immunity in Nano systems.
Usage Precautions:
- Nano Specific: Do not use this power supply on VersaMax Micro or standard racks; it is mechanically and electrically specific to Nano.
- Load Check: Verify the total current draw of the Nano stack does not exceed the PWR101E rating.
- Safety: Lockout/Tagout (LOTO) procedures must be followed during installation.
