Description

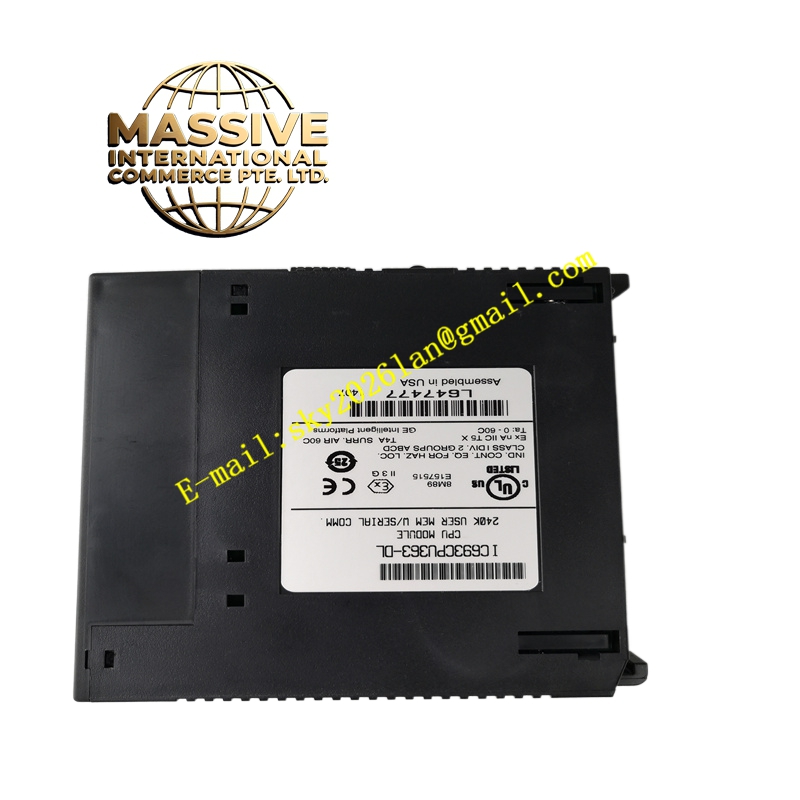

GE IC693CPU363 Technical Specifications:
- Processor Type: 80386EX microprocessor.
- Clock Speed: 25 MHz.
- User Memory: 240 KB embedded user memory (RAM and Flash).
- Boolean Execution Speed: Typical scan rate of 0.22 ms per 1K logic.
- I/O Capacity: Supports up to 4096 discrete I/O points and 2048 analog inputs / 512 analog outputs.
- Communication Ports: Three built-in serial communication ports (One RS-232 and two RS-485).
- Power Requirement: 890 mA @ 5 VDC.
Functional Features:
- Multi-Port Communication: Port 1 supports SNP/SNPX slave; Ports 2 and 3 support SNP/SNPX master/slave and RTU slave protocols.
- Expansion Capability: Supports up to 8 local and remote drop baseplates.
- Real-Time Clock: Built-in battery-backed real-time clock for accurate time-stamping of events.
- Software Compatibility: Fully supported by Logicmaster 90, VersaPro, and Proficy Machine Edition software.
Application Scenarios:
- Mid-to-large scale industrial automation and process control.
- Manufacturing lines requiring high-speed logic processing and extensive I/O.
- Integration with SCADA systems via serial communication networks.
Material Composition & Structural Characteristics:
- Form Factor: Single-slot modular design.
- Connectors: RJ45 and 15-pin Sub-D connectors for serial communication.
- Construction: Industrial-grade multi-layer PCB with high-density surface-mount components.
- Indicators: Front-panel LEDs for status, fault, and port activity monitoring.
Working Principle: The CPU continuously executes a cyclic scan process, reading inputs from the I/O modules, processing the user program logic stored in its 240 KB memory, and updating the outputs. The 80386EX processor handles complex mathematical calculations and communication tasks simultaneously, utilizing its three serial ports to exchange data with external devices independently.
Installation Requirements:
- Mounting: Insert the module into the designated CPU slot on the Series 90-30 baseplate and secure it with the locking screw.
- Wiring: Connect RS-232/RS-485 cables to the appropriate front-panel ports for programming and network communication.
- Power: Ensure the baseplate power supply provides adequate 5 VDC current.
Usage Precautions:
- Battery Maintenance: Replace the RAM backup battery promptly when the low-battery LED illuminates to prevent program loss.
- ESD Protection: Always use electrostatic discharge (ESD) wrist straps when handling the module.
- Environmental Limits: Operate strictly within the 0°C to 60°C ambient temperature range.
