GE IC693CPU372-CH

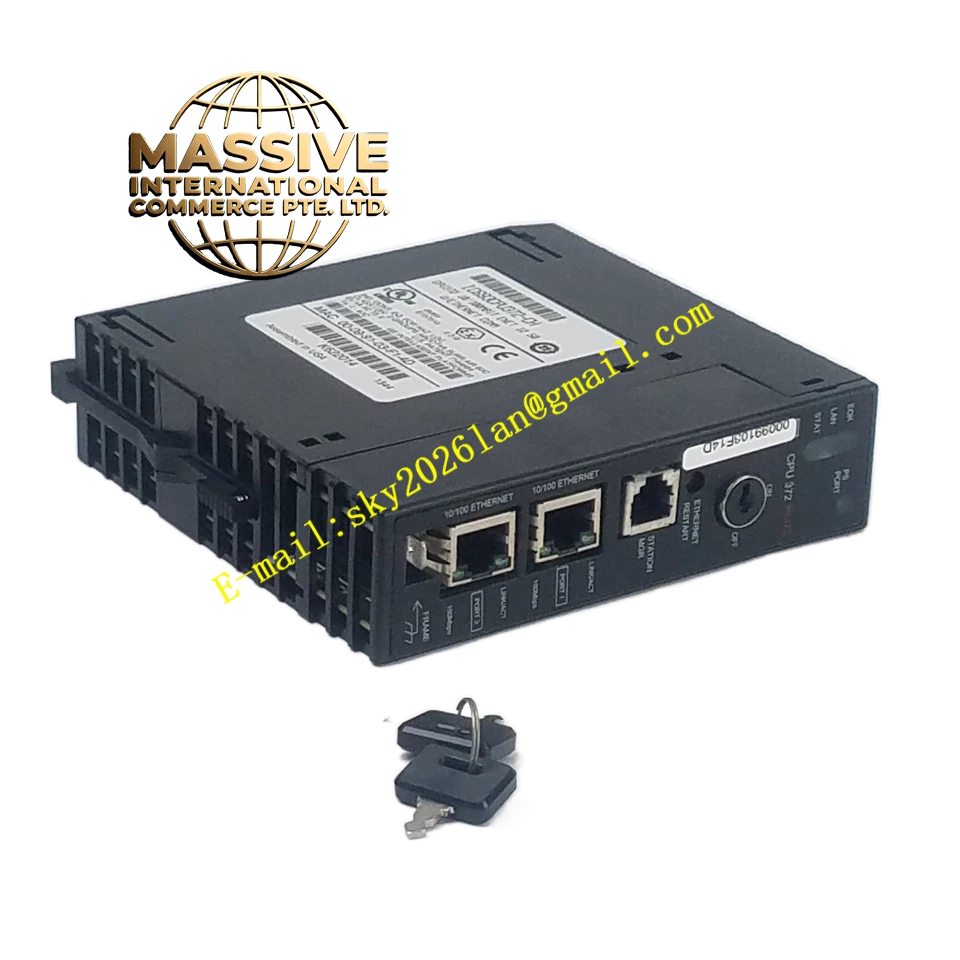

GE IC693CPU372-CH - Image 2

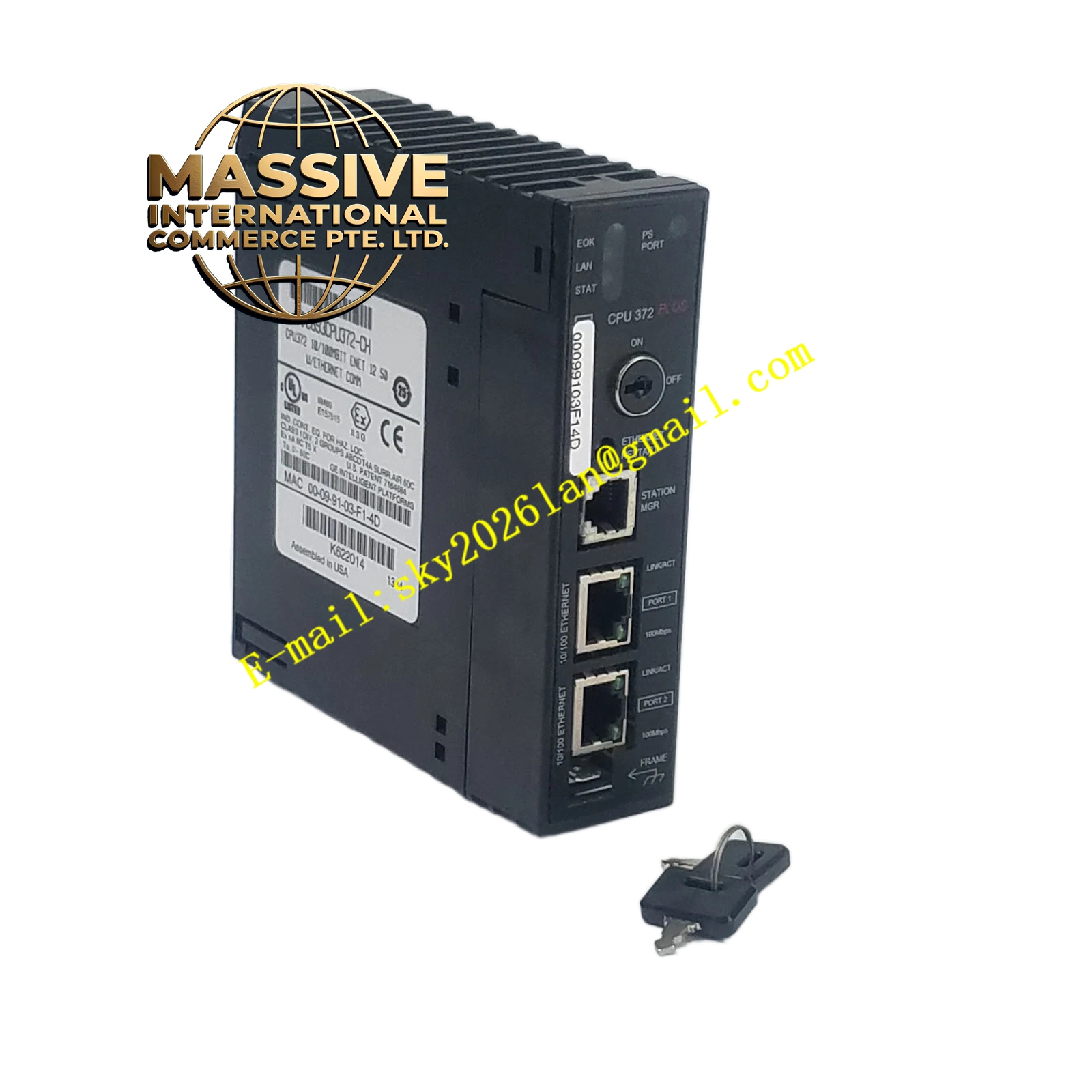

GE IC693CPU372-CH

Product Brief The GE IC693CPU372-CH is a specific revision variant of the IC693CPU372 single-slot modular CPU from GE Fanuc’s Series 90-30 family. The CH suffix indicates a particular factory revision with component and firmware updates. This CPU module retains all the core capabilities of the IC693CPU372 platform, including the 133 MHz AMD SC520 processor, built-in dual Ethernet interfaces, and extensive I/O capacity. The CH revision represents an evolution of the product with manufacturing improvements and enhanced reliability features.

Request Quote
Category:

Description

GE IC693CPU372-CH

Technical Specifications

  • Part Number: IC693CPU372-CH
  • Manufacturer: GE Fanuc
  • Series: Series 90-30
  • Product Type: Single-Slot Modular CPU with Ethernet Interface
  • Processor Type: AMD SC520
  • Processor Speed: 133 MHz
  • User Program Memory: 240 Kbytes
  • Register Memory: 240 kilobytes
  • Discrete Input Points (%I): 2,048 (fixed)
  • Discrete Output Points (%Q): 2,048 (fixed)
  • Discrete Global Memory (%G): 1,280 bits (fixed)
  • Internal Coils (%M): 4,096 bits (fixed)
  • Temporary Coils (%T): 256 bits (fixed)
  • System Status References (%S): 128 bits (fixed)
  • Register Memory (%R): Configurable 128 to 32,640 words
  • Analog Inputs (%AI): Configurable 128 to 32,640 words
  • Analog Outputs (%AQ): Configurable 128 to 32,640 words
  • System Registers (%SR): 28 words (fixed)
  • Timers/Counters: Greater than 2,000
  • Ethernet Ports: 2 x 10BaseT / 100BaseTX RJ-45, auto-sensing
  • Communication Protocols: TCP/IP, Modbus TCP/IP, SRTP
  • Execution Time: 0.15 msec per Boolean instruction
  • Floating Point Math: Yes, hardware-based
  • Battery-Backed Clock: Yes
  • Internal Power Used: 1.4 Amps at 5 VDC
  • Total Baseplates per System: 8

Key Features

  • 133 MHz AMD SC520 processor
  • Dual auto-sensing 10/100 Mbps Ethernet ports
  • TCP/IP and Modbus TCP/IP communication support
  • SRTP server for programming and HMI connectivity
  • Hardware floating-point math co-processor
  • Large configurable memory (240 KB user, up to 32,640 analog words)
  • Battery-backed real-time clock
  • Support for 7 expansion and 7 remote I/O baseplates
  • Web diagnostic capabilities
  • Front panel status LEDs and control switches

Application Scenarios Industrial automation and control, process manufacturing, material handling, packaging systems, water treatment facilities, building management systems, distributed control applications, OEM machinery control

Performance Parameters

  • Processor Speed: 133 MHz
  • Boolean Execution: 0.15 ms per instruction
  • I/O Capacity: 2048 discrete inputs, 2048 discrete outputs
  • Analog Capacity: Up to 32,640 words each direction
  • Ethernet: 10/100 Mbps auto-sensing
  • Power: 1.4A at 5VDC
