Description

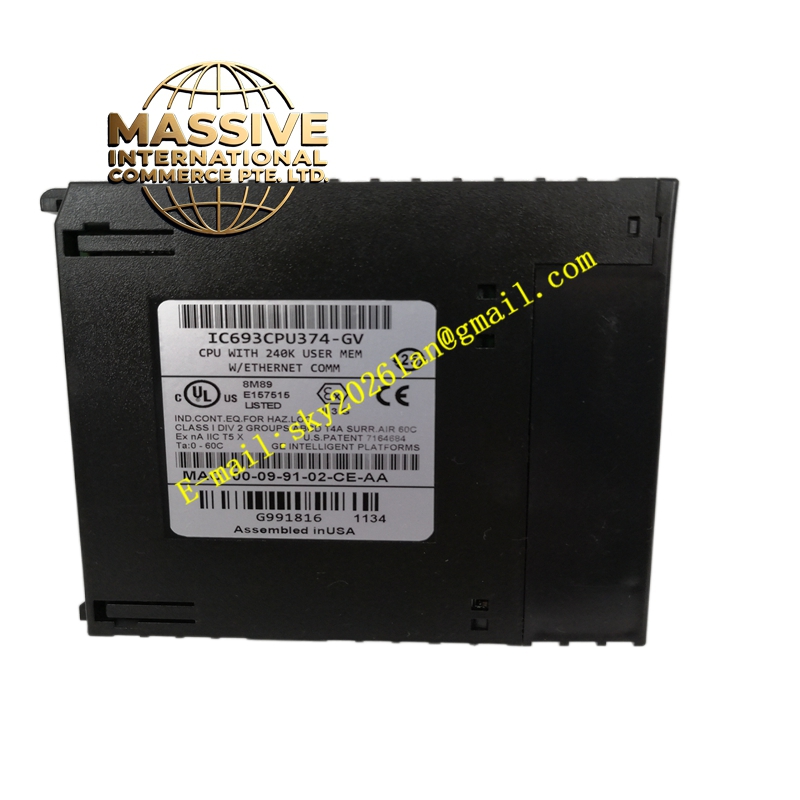

GE IC693CPU374 Technical Specifications:
- Processor Type: AMD SC520 (586-class) microprocessor.
- Clock Speed: 133 MHz.
- Boolean Execution Speed: Highly optimized scan rate of 0.15 ms per 1K logic.
- User Memory: 240 KB user memory with hardware floating-point support.
- Ethernet Interface: Dual 10/100 Mbps auto-sensing Ethernet ports.
- Power Requirement: 1.4 A @ 5 VDC (7.4 W).
Functional Features:
- Integrated Ethernet: Supports SRTP, Modbus TCP/IP, and Ethernet Global Data (EGD) protocols natively.
- Network Redundancy: Dual Ethernet ports support daisy-chaining and ring topologies for high availability.
- Advanced Processing: Hardware floating-point unit accelerates complex mathematical and PID control algorithms.
- I/O Expansion: Supports up to 8 baseplates (local + remote) and 32 distributed I/O stations.
Application Scenarios:
- High-speed motion control and complex mathematical processing.
- Large-scale distributed control systems (DCS) requiring extensive Ethernet networking.
- Applications demanding high-speed data exchange with SCADA and MES systems.
Material Composition & Structural Characteristics:
- Form Factor: Single-slot modular design.
- Connectors: Dual RJ45 Ethernet ports and standard backplane edge connector.
- Thermal Design: Enhanced heat dissipation components to handle the higher processing power.
Working Principle: Leveraging its 133 MHz 586-class processor, the IC693CPU374 rapidly executes user logic and floating-point calculations. The integrated dual Ethernet switch manages network traffic autonomously, allowing for high-speed, deterministic data exchange across the control network while maintaining continuous I/O scanning.
Installation Requirements:
- Power Supply: Must be paired with a high-capacity power supply (e.g., IC693PWR330/331) due to its 1.4A 5VDC requirement.
- Network Wiring: Connect standard CAT5e/CAT6 Ethernet cables to the dual RJ45 ports.
- Software: Requires VersaPro 2.03+ or CIMPLICITY Machine Edition 2.60+ for configuration.
Usage Precautions:
- Battery Backup: Requires an external battery (e.g., IC693ACC302) for RAM retention during power loss.
- Lifecycle Status: This module is discontinued; plan for future migration to PACSystems RX3i or VersaMax platforms.
- Cooling: Ensure adequate cabinet ventilation to manage the 7.4W power dissipation.
