Description

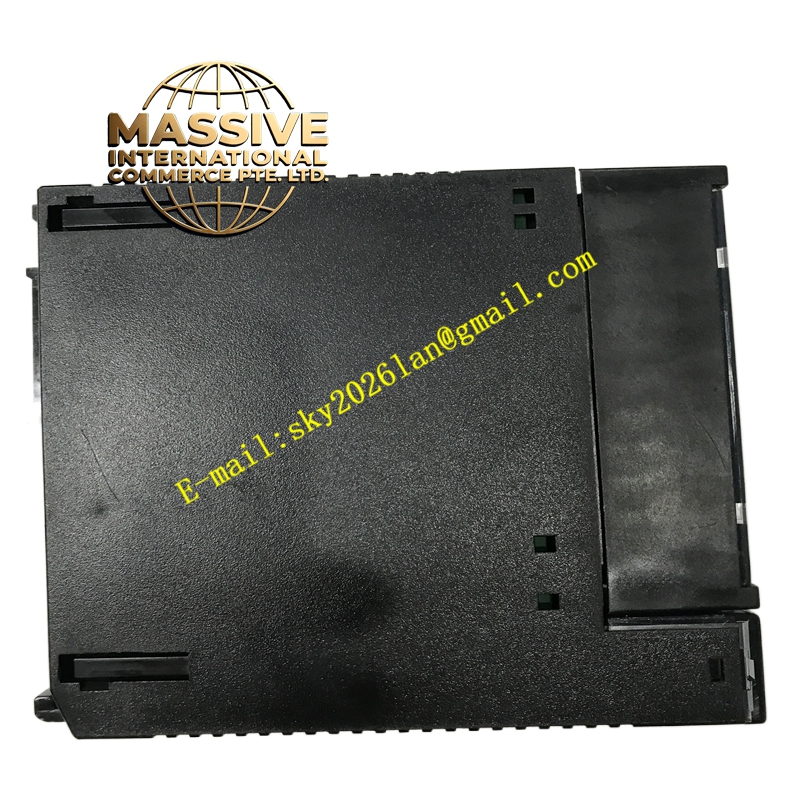

GE IC693MDL742 Technical Specifications:
- Output Configuration: 16 isolated positive logic (source) outputs.
- Voltage Range: 12/24 VDC nominal.
- Current Rating: 0.5 A per point, with isolated group current limits.
- Isolation: Galvanic isolation between output groups and backplane.
- Response Time: Fast switching characteristics suitable for high-speed discrete control.
Functional Features:
- Group Isolation: Prevents fault propagation between different output groups.
- Status Indication: Individual LED diagnostics for rapid troubleshooting.
- Noise Immunity: Enhanced filtering to operate reliably in electrically noisy environments.
Application Scenarios:
- Distributed control panels with mixed ground potentials.
- Control of sensitive electronic actuators and valves.
- Interfacing with third-party DC equipment requiring isolated control signals.
Material Composition & Structural Characteristics:
- PCB: Multi-layer board with optimized ground planes for EMI/RFI shielding.
- Components: High-quality isolated solid-state switching devices.
- Connectors: Standard Series 90-30 backplane edge connector and front-panel field terminals.
Working Principle: Similar to the MDL740, it sources current to connected loads. However, its internal architecture ensures that the switching circuits for each group are electrically isolated, allowing different output groups to reference different ground potentials safely.
Installation Requirements:
- Mount on standard Series 90-30 baseplates.
- Wire isolated groups to separate power supplies or isolated sections of the same supply if required by the application.
Usage Precautions:
- Verify isolation voltage ratings before connecting to different ground references.
- Do not exceed the per-point or per-group current ratings to maintain isolation integrity.
