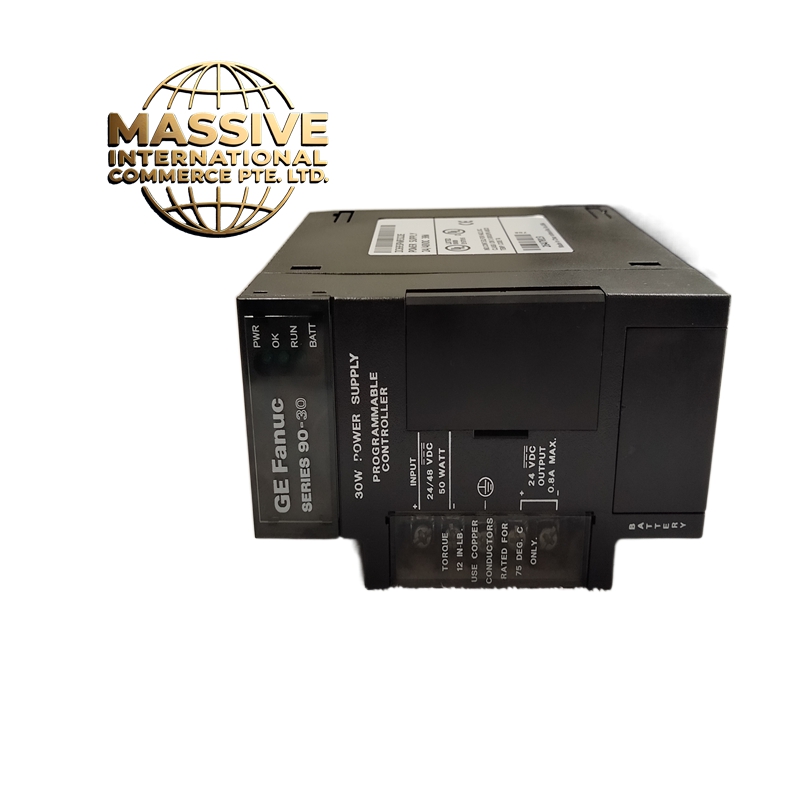

GE IC693PWR322E

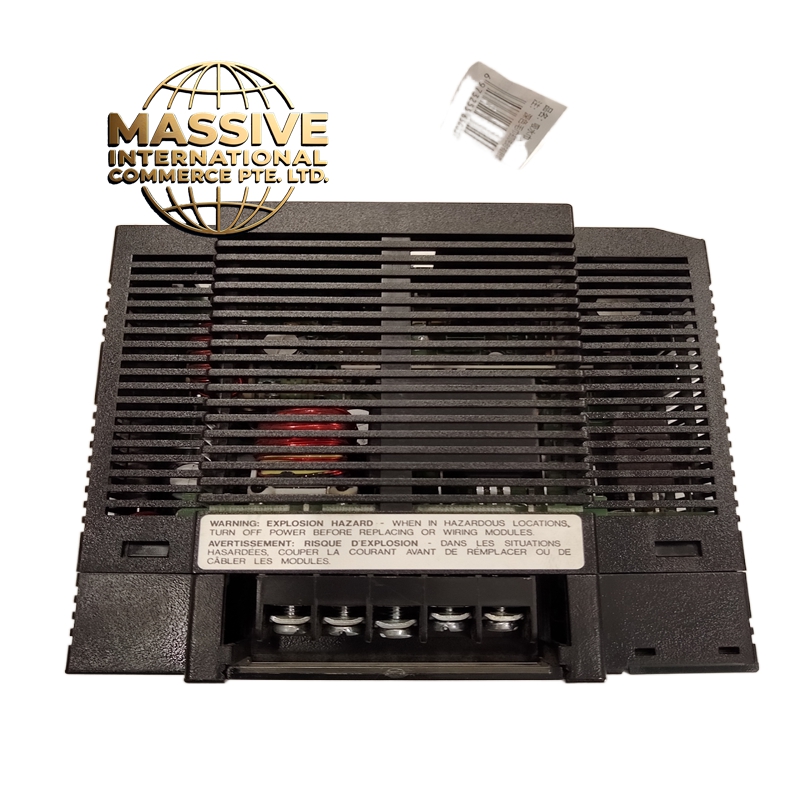

GE IC693PWR322E - Image 2

GE IC693PWR322E

  • Product Introduction: This is an enhanced variant of the IC693PWR322 power supply module for the GE Fanuc Series 90-30 PLC platform. The “E” suffix typically denotes an extended temperature range version or an enhanced diagnostics variant with improved fault reporting capabilities. It delivers the same 25VDC regulated output at 2.5A but features improved thermal management, extended diagnostic LEDs, and higher reliability components. It is designed for harsh industrial environments where standard modules may not meet the required MTBF or operating temperature specifications. The enhanced version is often specified in safety-critical applications, offshore platforms, and extreme temperature installations.
Request Quote
Category: SKU: GE IC693PWR322E

Description

GE IC693PWR322E

  • Technical Specifications:
    • Output Voltage: 25VDC nominal (±1% regulation)
    • Output Current: 2.5A maximum (62.5W)
    • Input Voltage: 120VAC / 240VAC selectable
    • Input Frequency: 47-63Hz
    • Operating Temperature Range: -40°C to +70°C (extended range)
    • Ripple and Noise: <100mV p-p (improved over standard)
    • Efficiency: ~70% at full load
    • Isolation: 1500V RMS AC to DC
    • MTBF: >150,000 hours (enhanced components)
    • Dimensions: IC693 standard form factor
    • Weight: ~0.5 kg
  • Functional Features:
    • Extended Temperature Operation: Functions reliably from -40°C to +70°C, suitable for outdoor and extreme environments
    • Enhanced Diagnostics: Additional LED indicators for overtemperature, overcurrent, and undervoltage conditions
    • Improved Ripple Performance: Lower noise output benefits sensitive analog modules
    • Extended Component Life: Uses industrial-grade capacitors and MOSFETs rated for higher temperature
    • Same Backplane Compatibility: Drop-in replacement for IC693PWR322 in any 90-30 rack
    • Redundancy Ready: Fully compatible with N+1 redundant power configurations
  • Application Scenarios:
    • Outdoor PLC installations in mining and oil fields
    • Arctic or desert environment automation
    • Safety-critical process control (SIL-rated systems)
    • Offshore platform control systems
    • High-altitude installations with wide temperature swings
    • Food and beverage plants with washdown requirements (IP-rated chassis)
  • Performance Parameters:
    • Output Ripple: <100mV p-p (vs 150mV on standard)
    • Thermal Derating: Begins at 50°C ambient, full power at 25°C
    • Transient Response: <8ms recovery from 50% load step
    • Inrush Current: <25A peak (improved soft-start)
    • Power Factor: >0.95
    • Common Mode Noise: <50mV
  • Material Composition:
    • Housing: High-temperature polycarbonate, UL94 V-0, rated for -40°C to +85°C
    • PCB: 4-layer FR-4 with high-Tg (glass transition temperature) material, 170°C rated
    • Capacitors: 105°C rated electrolytic, solid polymer for output filtering
    • Transformer: High-temperature enamel wire, Class H insulation (180°C)
    • Connectors: Gold-plated with nickel underplate for corrosion resistance
  • Structural Features:
    • Identical form factor to IC693PWR322 for drop-in replacement
    • Additional LED: Overtemperature warning (amber)
    • Reinforced mounting brackets for vibration resistance
    • Conformal-coated PCB for humidity protection
    • Larger heat sink fins compared to standard version
  • Working Principle:
    • Same as IC693PWR322 but with enhanced switching regulator using a higher-frequency oscillator (100kHz vs 50kHz) for smaller filter components and lower ripple. The feedback loop uses a precision voltage reference (±0.5% tolerance) instead of a standard reference. The overtemperature circuit uses a thermistor on the heat sink to monitor case temperature and reduce output current if temperature exceeds 70°C.
  • Installation Requirements:
    • Same as IC693PWR322 — drop-in compatible
    • Ensure chassis has adequate ventilation even at extreme temperatures
    • Use thermally rated wire for AC input connections
    • Verify extended temperature rating matches your environment
  • Usage Precautions:
    • The “E” version costs more — only specify it if you need the extended temperature range
    • Do not mix standard and enhanced versions in the same rack without checking compatibility
    • At temperatures above 60°C, derate the bus current by 10% per 10°C
    • Check the overtemperature LED during commissioning — if it lights at normal ambient, there is a cooling issue
