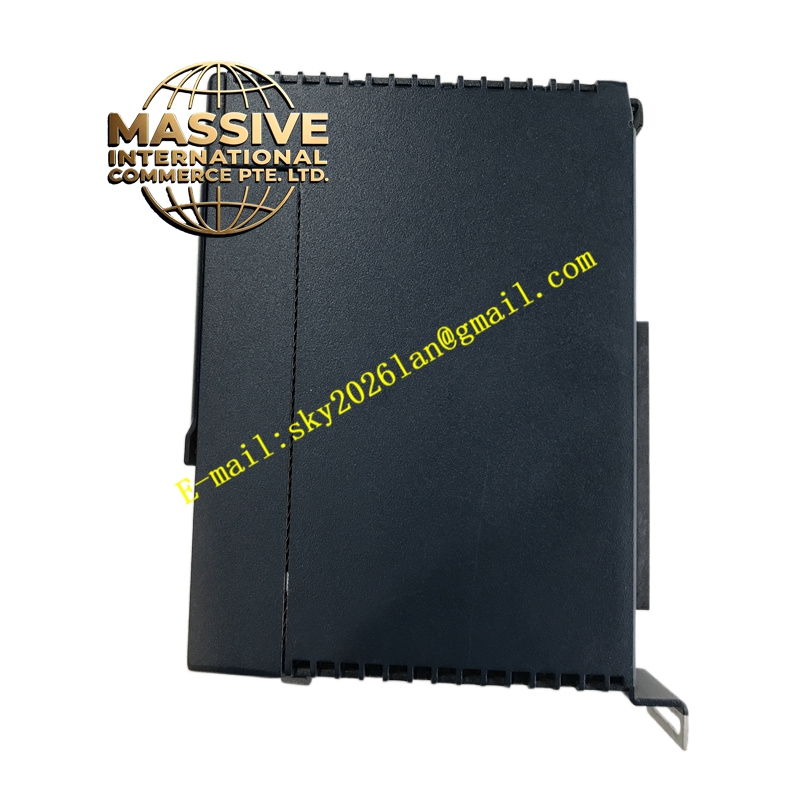

GE IC695CPE305

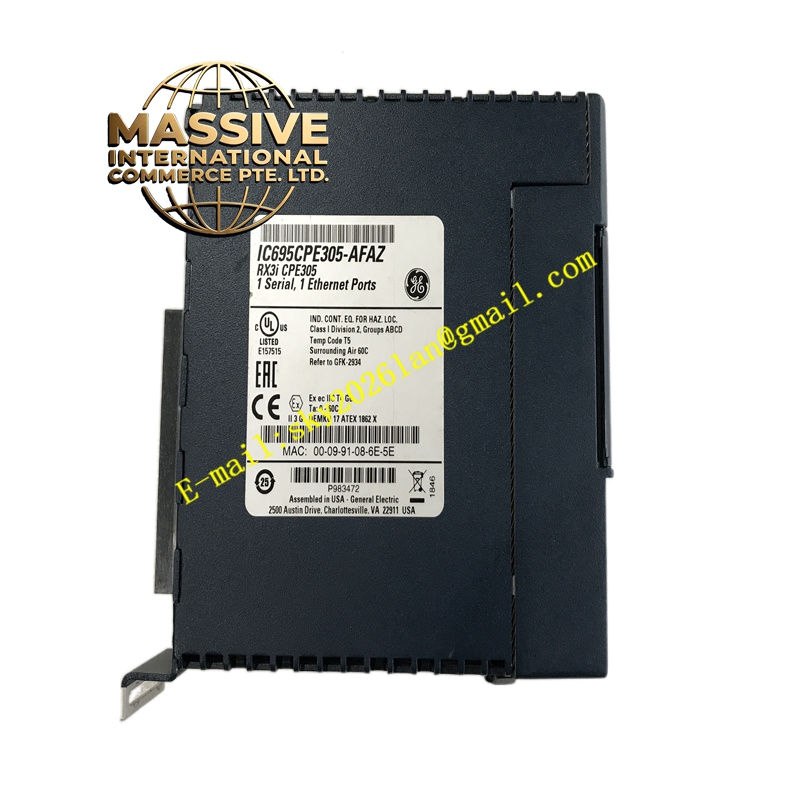

GE IC695CPE305 - Image 2

GE IC695CPE305

Product Overview

The IC695CPE305 is a high-performance CPU for the GE PACSystems RX3i series, featuring a 500 MHz processor, 64 MB of user memory, and support for up to 64,512 I/O points. It is designed for large-scale, mission-critical applications requiring extreme performance, massive data handling, and redundant operation, such as oil & gas, power generation, and automotive production

Request Quote
Category: SKU: GE IC695CPE305

Description

GE IC695CPE305

Technical Specifications

Parameter Specification
Processor 500 MHz Intel XScale
User Memory 64 MB (configurable for program, data, and retentive storage)
I/O Capacity Up to 64,512 digital I/O or 8,192 analog I/O
Programming Languages Ladder Logic, Structured Text, Function Block Diagram (IEC 61131-3)
Communication Ports 2 × Ethernet (10/100/1000BaseT), 1 × RS-232, 1 × RS-485, 2 × USB
Supported Protocols Modbus TCP, EGD, Profinet, Profibus DP, Ethernet/IP, OPC UA
Redundancy Supports CPU redundancy (IC695RMX128) for fault-tolerant systems
Operating Temperature 0°C to 60°C
Humidity 5% to 95% (non-condensing)
Power Supply Requires compatible RX3i power supply (e.g., IC694PWR330)
Dimensions Standard RX3i module size

Functional Characteristics

  • Ultra-High Performance: 500 MHz processor handles the most demanding automation tasks with ease.
  • Massive Memory: 64 MB of user memory supports large-scale programs, extensive data logging, and high-speed data acquisition.
  • Advanced Networking: Gigabit Ethernet ports enable high-speed communication with HMI, SCADA, and cloud systems.
  • Redundancy Support: Compatible with GE redundancy modules for high-availability systems.

Application Scenarios

  • Large-Scale Manufacturing: Managing entire production plants with thousands of I/O points.
  • Oil & Gas: Controlling drilling rigs, pipelines, and refinery processes with high reliability.
  • Power Generation: Managing turbine control, grid synchronization, and distribution systems.
  • Automotive Production: Coordinating body shops, paint lines, and final assembly in Tier 1 suppliers.

Installation & Usage Notes

  • Requires a high-performance RX3i backplane (e.g., IC695CHS012) and redundant power supplies for critical applications.
  • Use GE Machine Edition software with optional redundancy features for system configuration.
  • Ensure robust cooling and ventilation for the CPU in harsh environments.
  • The CPU supports advanced security features, including user authentication and encrypted communication.
