Description
GE IC698CPE030 Technical Specifications:
- Microprocessor: 600 MHz Intel Pentium-M microprocessor.
- Memory Capacity: 64 MB of battery-backed user RAM and 64 MB of non-volatile user flash memory.
- I/O Capacity: Supports up to 32K bits of discrete I/O and 32K words of analog I/O.
- Boolean Execution Speed: 0.069 milliseconds per 1000 Boolean contacts/coils.
- Program Blocks: Supports up to 512 program blocks, with a maximum size of 128 KB per block.
- Communication Ports: Dual embedded 10/100 Mbps Ethernet ports, one RS-232 port, one RS-485 port, and one station manager port.
Functional Features:
- High-Speed Processing: Pentium-M architecture provides rapid execution for complex floating-point math and logic.
- Dual Ethernet Ports: Features an internal switch with auto-negotiation for daisy-chaining or redundant network topologies.
- Extensive Protocol Support: Native support for SRTP, Modbus TCP/IP, Ethernet/IP, and Ethernet Global Data (EGD).
- Real-Time Clock: Battery-backed calendar clock for precise event timestamping and historical data logging.
- Bit-in-Word Referencing: Allows individual bits within a word to be used as Boolean inputs/outputs in logic.
Application Scenarios:
- High-speed packaging and bottling lines.
- Complex motion control and robotics coordination.
- Large-scale distributed control systems (DCS).
- Water and wastewater treatment facilities.
Performance Parameters:
- Processing Power: Exceptional throughput for handling massive I/O counts and complex PID loops.
- Network Throughput: 10/100 Mbps auto-sensing Ethernet with full-duplex capability.
- Memory Access: Fast access to large data arrays and historical buffers via %W reference tables.
Material Composition & Structural Characteristics:

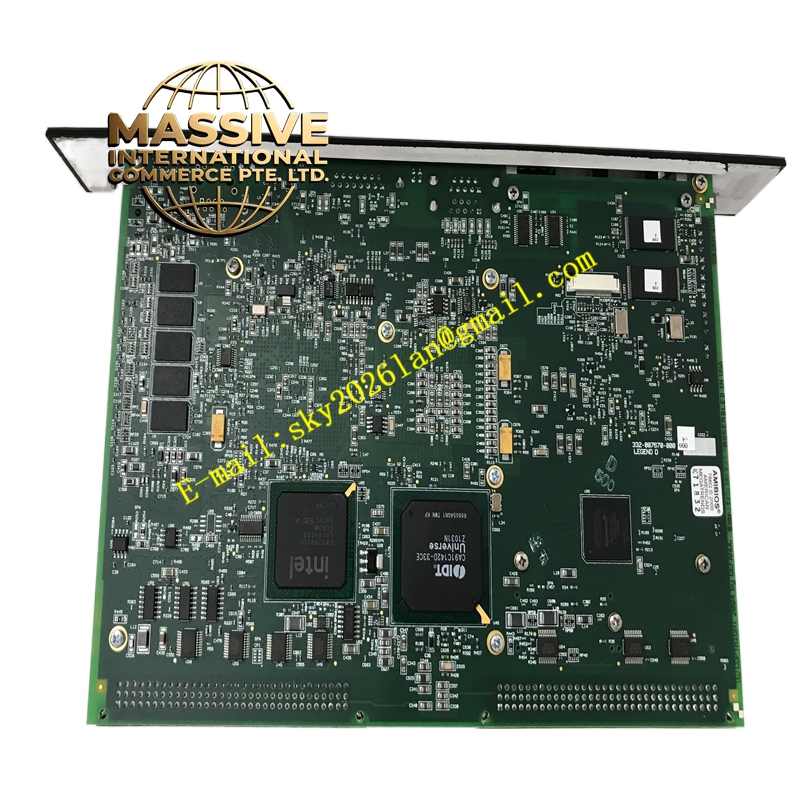

- PCB Construction: Multi-layer industrial PCB with high-density integrated circuits.

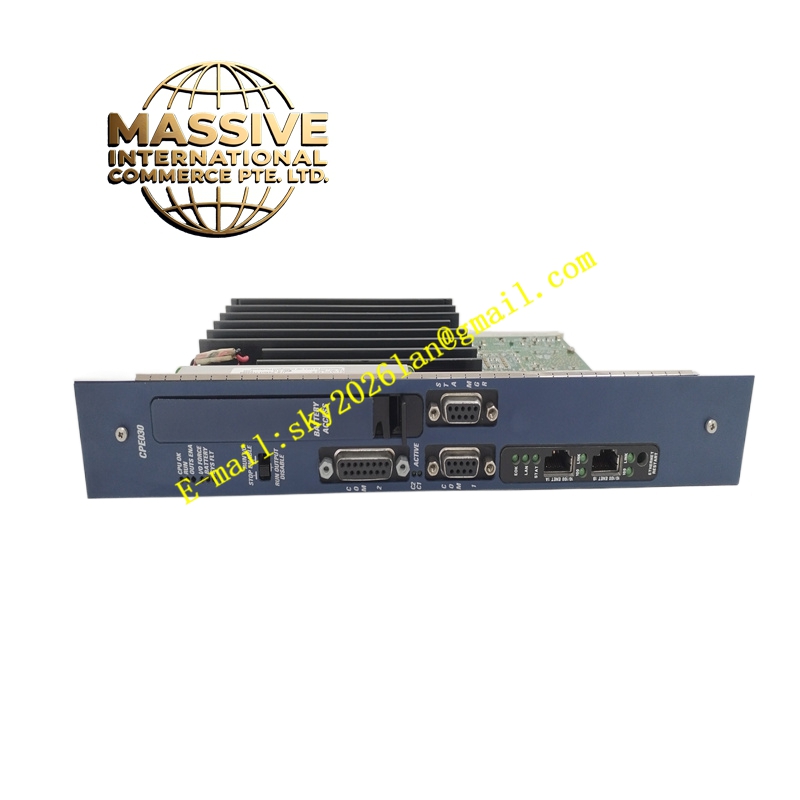

- Connectors: Standard RJ-45 Ethernet jacks and DB-9/terminal block serial interfaces.
- Status Indicators: Comprehensive LED array for Power, Run, Fault, Ethernet Activity, and Serial Port status.
Working Principle: The IC698CPE030 fetches instructions from its 64 MB RAM, processes logic using the 600 MHz Pentium-M core, and communicates with the VME64 backplane at high speeds. The dual Ethernet ports operate via an internal switch, allowing the CPU to act as both a network node and a mini-switch for other devices. Flash memory stores the application, while RAM handles real-time variable execution.
Installation Requirements:
- Rack Compatibility: Must be installed in a PACSystems RX7i VME64 rack.
- Power Requirements: Draws up to 3.4A from the 5V DC backplane; ensure the power supply has adequate headroom.
- Network Configuration: Configure IP addresses, subnet masks, and gateway settings via the programming software before deployment.
- Cooling: Ensure the control panel has active ventilation to maintain ambient temperatures between 0°C and 60°C.
Usage Precautions:
- Memory Retention: Replace the backup battery immediately if the battery indicator LED illuminates to prevent program loss.
- Network Security: Utilize built-in password protection and access controls to prevent unauthorized modifications to the control logic.
- Hot-Swap: Do not remove or insert the CPU while the rack is powered on unless the system is explicitly configured for hot-swapping.
- Software Compatibility: Ensure Proficy Machine Edition software is updated to a version that fully supports the CPE030 hardware.
