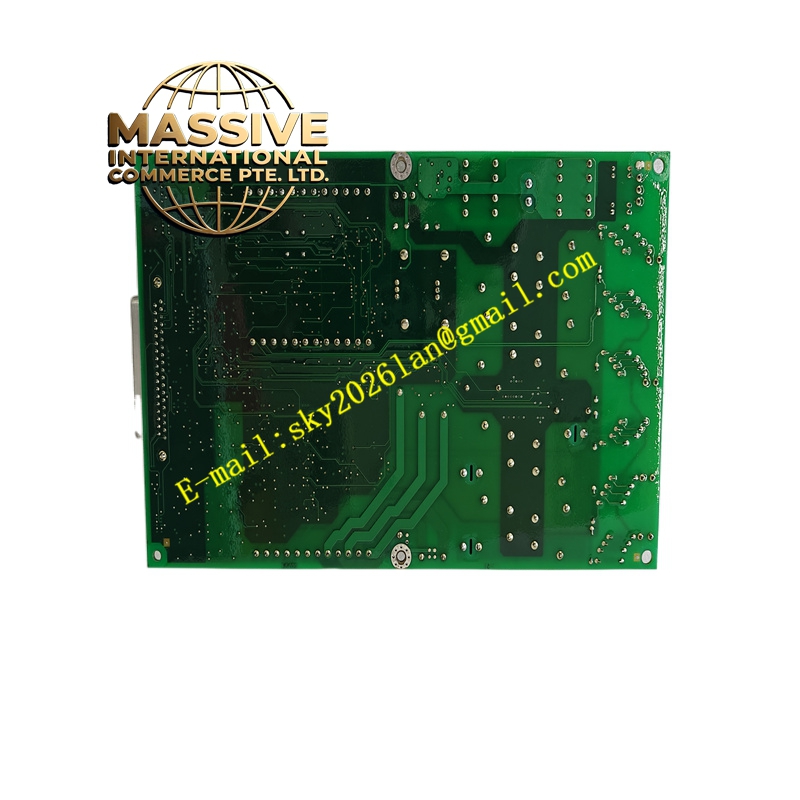

GE IS200AEADH4A 109W3660P001

GE IS200AEADH4A 109W3660P001

Product Introduction:

  • The GE IS200AEADH4A (catalog number 109W3660P001) is an Input Module Terminal Board used with GE Mark V and Mark VIe turbine control systems. It serves as an RST (Redundant/Simplex/Triple-modular-redundant) analog I/O board, scaling and conditioning many analog signals read by terminal boards installed in I/O cores. It supports LVDT inputs, servo outputs, thermocouple inputs, 4–20 mA I/O, vibration inputs, relay driver outputs, pulse inputs, voltage inputs, and generator/line signals. Some signals are routed to the STCA board via 3PL, while generator and line signals communicate via JE connector to the TCQC board.
Request Quote
Category: SKU: GE IS200AEADH4A 109W3660P001

Description

GE IS200AEADH4A 109W3660P001

  • Technical Specifications:
    • Series: GE Mark V; compatible with Mark VIe architectures
    • Supported Signal Types: LVDT, thermocouple, 4–20 mA input and output, voltage inputs, vibration, pulse inputs, generator/line signals, relay drivers
    • Connector Types: 3PL data bus to STCA, JE connector to TCQC
    • Operating Temperature Range: 0 °C to +60 °C
    • Relative Humidity: 5% to 95%, non-condensing
    • Power: Powered through system backplane connections
    • Dimensions: Fits Mark V I/O rack dimensions (subject to rack drawings)
  • Functional Characteristics:
    • Scales and conditions a wide variety of analog signals critical for turbine control
    • Supports redundant and simple control configurations
    • Interfaces with TCQC board for generator and line signal exchange
    • Works with TCQA to scale and condition 4–20 mA inputs such as compressor stall detection and fuel pressure signals
    • Supports high-precision analog feedback loops for servo and actuator control
  • Application Scenarios:
    • Gas and steam turbine control systems requiring robust analog I/O processing
    • Generator control applications with stringent signal conditioning requirements
    • Large-scale power plant automation where multiple analog signals must be processed reliably
    • Industrial systems using Mark V architecture with analog-based control loops
  • Performance Parameters:
    • Handles multiple signal types simultaneously without performance degradation
    • Maintains accuracy across the industrial temperature range
    • Provides deterministic timing essential for protective and control functions
  • Material and Structural Characteristics:
    • Industrial-grade PCB with high-reliability components
    • Equipped with multiple connectors for board-to-board and field signal interfacing
    • Includes support circuitry such as filtering, isolation, and protection components
    • Constructed for durability in harsh power plant environments
  • Working Principle:
    • Accepts raw analog inputs from field devices via terminal boards
    • Performs signal conditioning, scaling, and filtering to generate standardized outputs
    • Communicates with other boards via defined connectors (3PL, JE) for system integration
    • Converts control signals into appropriate analog outputs for driving actuators
  • Installation Requirements:
    • Mount in designated Mark V I/O core racks ensuring proper alignment with terminal boards
    • Secure all connectors and verify seating to avoid intermittent connections
    • Follow GE installation manuals for grounding and shielding guidelines
    • Perform functional checks after installation to verify signal integrity
  • Usage Notes:
    • Ensure all jumper settings and configurations match the application requirements
    • Monitor board status and diagnostics regularly for early fault detection
    • Replace only with compatible hardware versions to maintain system integrity
    • Follow ESD precautions and power-down procedures during maintenance
