Description

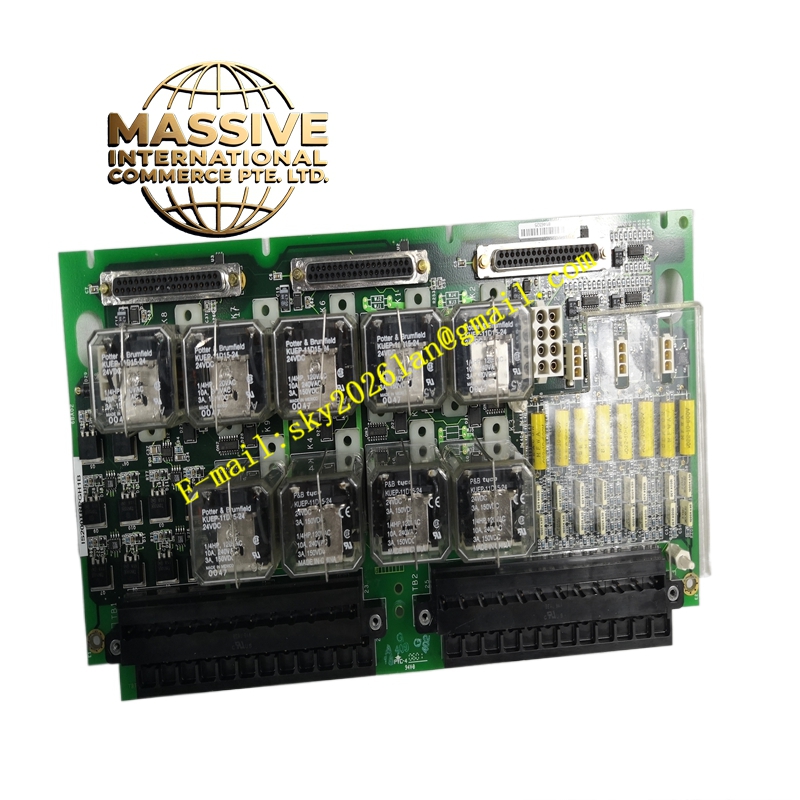

GE IS200TRPGH1BDD
Technical Specifications
- Part Number: IS200TRPGH1BDD
- Manufacturer: General Electric
- Series: Mark VI Speedtronic
- Product Type: Terminal Board
- Function: Gas Turbine Primary Trip Terminal Board
- Controlled By: PTUR/YTUR
- Magnetic Relays: 9
- Voting Circuits: 3
- Geiger-Mueller Inputs: 8
- Trip Solenoids: 3
- Application Compatibility: TMR (Triple Modular Redundancy)
- Flame Detectors: 8 detectors per TRPG
- Flame Detector Supply Voltage: 335 V DC
- Voltage Supply: Negative 125 V DC
- Relay Configuration: 9 relays, grouped in sets of 3 for solenoid control
- Surge Protection: Metal Oxide Varistors (MOVs) for current suppression
- Connectors: 3 D-shell connectors
- Terminal Strips: 2 terminal strips with multiple connection points
- Compatibility: Works with PTUR/YTUR and TREG control boards; compatible with all versions of PTUR/YTUR modules
Key Features
- Primary trip function for gas turbine protection
- Nine magnetic relays organized into three voting circuits
- Interface for trip solenoid control (Electrical Trip Devices)
- Collaboration with TREG for comprehensive primary and emergency ETD interfaces
- Integration of eight Geiger Mueller flame detectors for gas turbine applications
- Metal Oxide Varistors (MOVs) for surge protection and current suppression
- Dual-sided control and redundancy through TRPG and TREG integration
- TMR (Triple Modular Redundancy) application compatibility
- Three D-shell connectors and two terminal strips for versatile connectivity
Application Scenarios Gas turbine protection systems, steam turbine management, combined cycle power plants, industrial turbine drives, generator control and protection, power generation facility automation
Performance Parameters
- Relays: 9 magnetic relays
- Voting Circuits: 3
- Flame Detectors: 8 Geiger Mueller inputs
- Trip Solenoids: 3
- Flame Detector Supply: 335 V DC
- System Voltage: -125 V DC
