Description

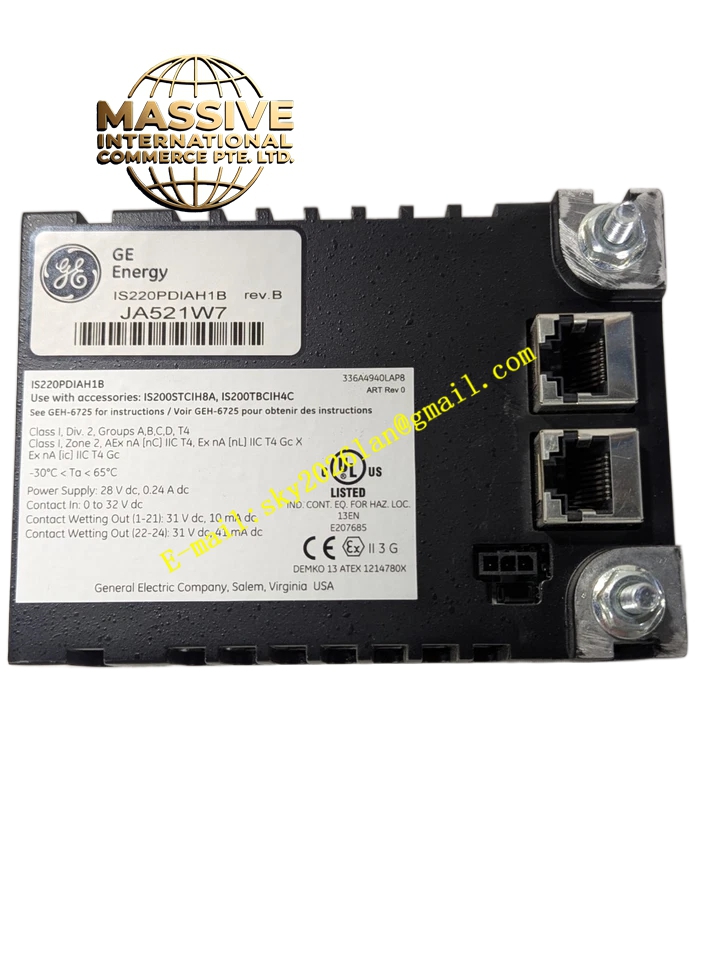

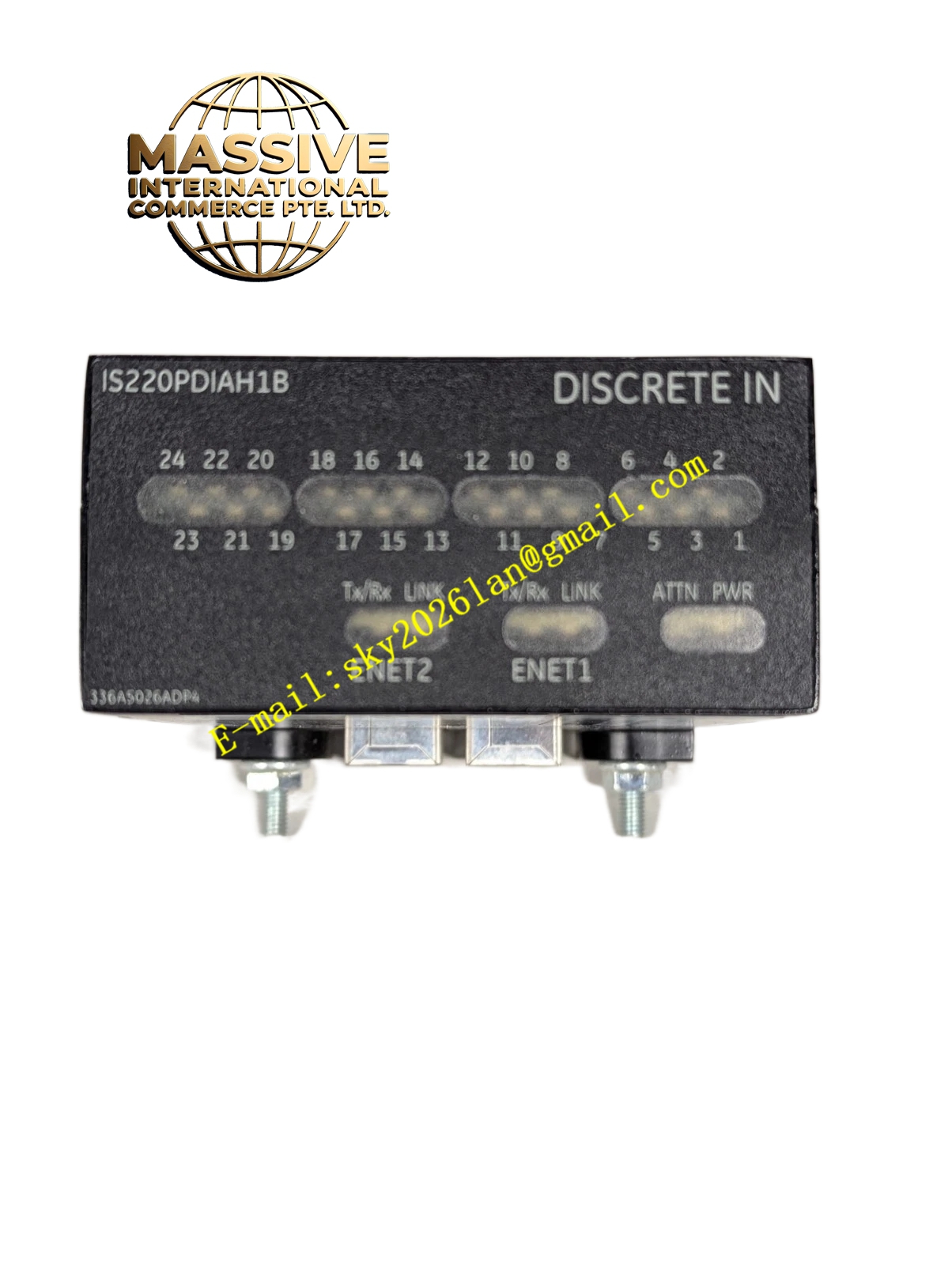

GE IS220PDIAH1B
Technical Specifications
- Part Number: IS220PDIAH1B
- Series: Mark VIe
- Manufacturer: General Electric
- Product Type: Power Distribution Interface Board
Functional Features
- Power Management: Efficiently distributes power to connected I/O modules and system components.
- Diagnostic Capabilities: Provides real-time monitoring of power status and system health.
- Communication Interface: Facilitates data exchange between the power distribution layer and the main controller.
- Redundancy Support: Designed to support high-availability control architectures.
Application Scenarios
- Turbine Control Systems: Essential component in Mark VIe gas and steam turbine control systems.
- Industrial Automation: Power distribution and monitoring in critical industrial processes.
- Power Generation: Ensuring reliable power delivery to control system I/O modules.
Performance Parameters
- Reliability: High MTBF (Mean Time Between Failures) for continuous operation.
- Environmental Tolerance: Designed to operate in industrial temperature and humidity ranges.
Material Composition
- PCB: Multi-layer industrial-grade printed circuit board.
- Components: High-reliability power management and communication ICs.
Structural Characteristics
- Form Factor: Standard Mark VIe module form factor.
- Connectors: Backplane connectors for seamless integration with the VME rack.
Working Principle
The board receives input power and conditions it for distribution to downstream modules. It continuously monitors voltage and current levels, reporting any anomalies to the main controller for system protection and diagnostics.
Installation Requirements
- Mounting: Must be securely installed in a compatible Mark VIe VME rack.
- Power Connections: Ensure proper power input connections and grounding.
- Cooling: Adequate airflow must be maintained for thermal management.
Usage Precautions
- ESD Protection: Always use ESD protection when handling the board.
- Power Off: Never insert or remove the board while the system is powered on unless hot-swap capable.
- Verification: Verify power distribution status via diagnostic LEDs before system startup.
