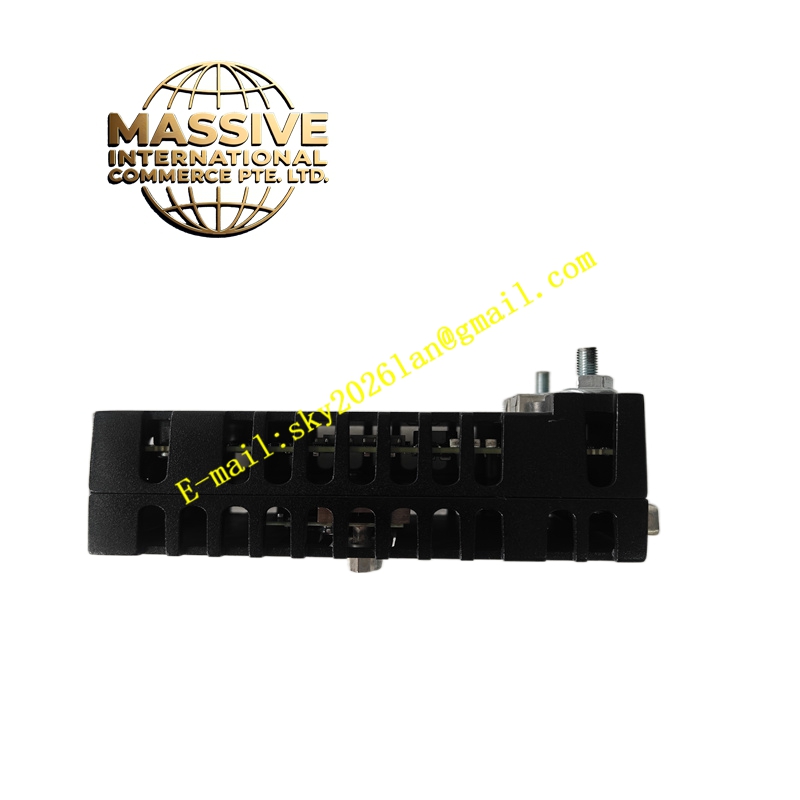

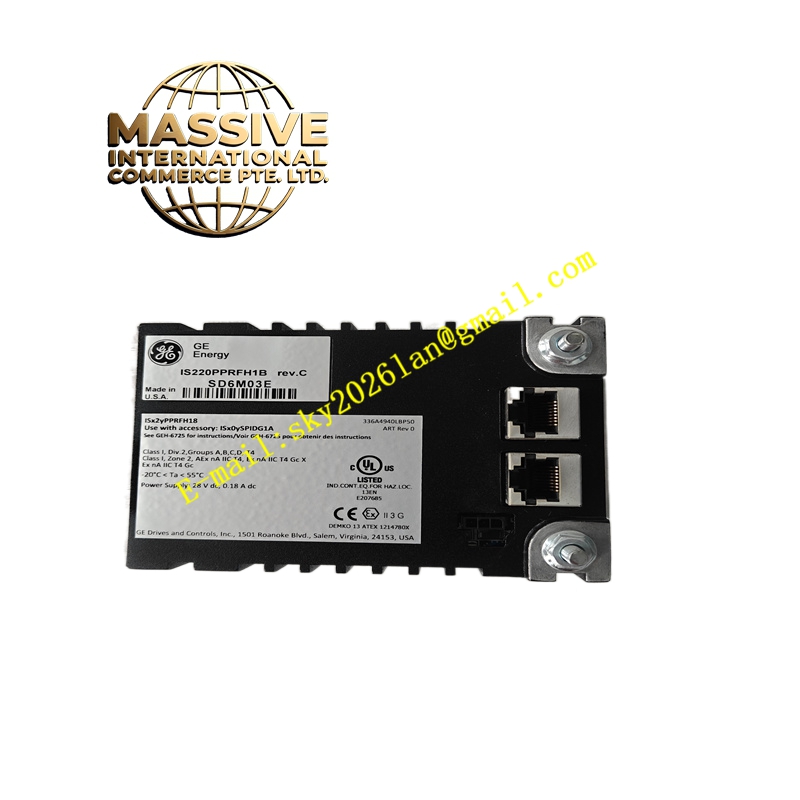

GE IS220PPRFH1B
- Technical Specifications:
- Series: GE Mark VIe
- Function: PROFIBUS DPV0 Class 1 master
- Power: 27.4–28.6 VDC
- Compatibility: Pairs with IS200SPIDG1A terminal board
- Protocol: PROFIBUS DP (DPV0)
- Communication module: Uses Hilscher COM-C PROFIBUS communication module (based on Siemens ASPC2)
- Functional Features:
- Integrates PROFIBUS networks into Mark VIe control systems
- Supports cyclic I/O data exchange and diagnostic information
- Supports redundant Ethernet connections for high availability
- Configurable for simplex, dual, and TMR applications
- Application Scenarios:
- Integration with third-party PROFIBUS devices in turbine control
- Connecting remote I/O or auxiliary systems via PROFIBUS
- Plants requiring standardized fieldbus communication
- Performance Parameters:
- High-speed, deterministic data exchange per PROFIBUS DP standards
- Robust gateway operation in industrial environments
- Material and Structural Characteristics:
- Industrial-grade housing with RJ45 Ethernet and terminal board connectors
- Designed for Mark VIe I/O mounting
- Working Principle:
- The module acts as a gateway between the Mark VIe Ethernet network and PROFIBUS DP slaves. It maps I/O data between the two networks and provides diagnostics and status information to the controller.
- Installation Requirements:
- Mount on compatible terminal board and secure properly
- Connect Ethernet and 28 VDC power per GE guidelines
- Configure PROFIBUS network parameters (addresses, baud rate) using ToolboxST
- Usage Notes:
- Ensure correct termination and PROFIBUS network setup
- Use approved cable types and shielding for PROFIBUS
- Verify compatibility with slave devices and their GSD files
