Description

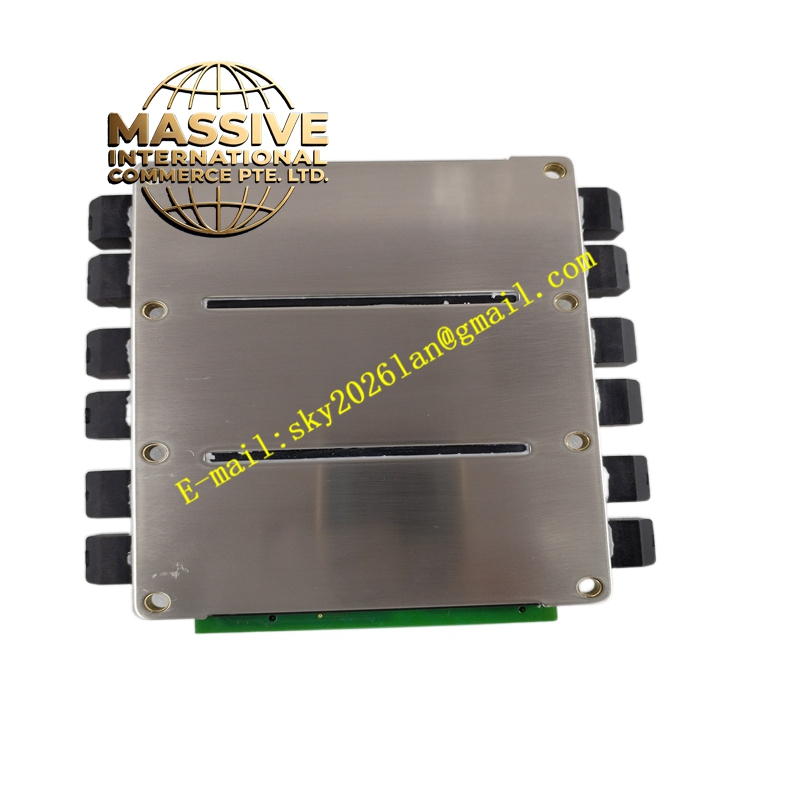

GE IS400AEBMH1AJD
Technical Specifications:
- Series: GE Mark V Speedtronic
- Part Number: IS400AEBMH1AJD
- Manufacturer: General Electric
- Product Type: RST Analog I/O Board (TCQA)
- Signal Types: LVDT, servo valve outputs, thermocouple, 4–20 mA I/O, vibration, relay driver outputs, pulse inputs, voltage inputs, generator/line signals
- Key Connectors:
- 3PL: Data bus connecting STCA, TCQA, and TCQE boards in the core
- JE: Exchanges pulse, generator/line signals, relay driver outputs, and servo valve drive outputs with TCQC
- JD: Transmits trip signals to the TCTG board
- JA: Thermocouple inputs and cold-junction compensation from TBQA
- JB: 4–20 mA inputs and outputs to/from TBQC
- JF: LVDT/LVDR position inputs from TBQC
- JG: ±10 V DC inputs and vibration inputs from TBQB
- Operating Temperature: Industrial range per Mark V specifications
- Power: Supplied via 2PL from the TCPS board
Functional Features:
- Scales and conditions a wide variety of analog signals critical for turbine control
- Routes conditioned signals to the COREBUS via the 3PL connector
- TCQA board specifically scales 4–20 mA input signals such as compressor stall detection and fuel flow pressure
- Supports redundant R, S, and T core configurations for high-reliability turbine control
- Interfaces with STCA, TCQC, TCQE, and TCTG boards for comprehensive signal distribution
Application Scenarios:
- Gas turbine control systems requiring multi-type analog signal processing
- Steam turbine control with LVDT position feedback and servo valve drive
- Power generation plants using Mark V Speedtronic architecture
- Turbine protection systems requiring vibration and pulse signal monitoring
Performance Parameters:
- Handles multiple analog signal types simultaneously without performance degradation
- Maintains accuracy and stability across the operating temperature range
- Provides deterministic signal conditioning essential for protective and control functions

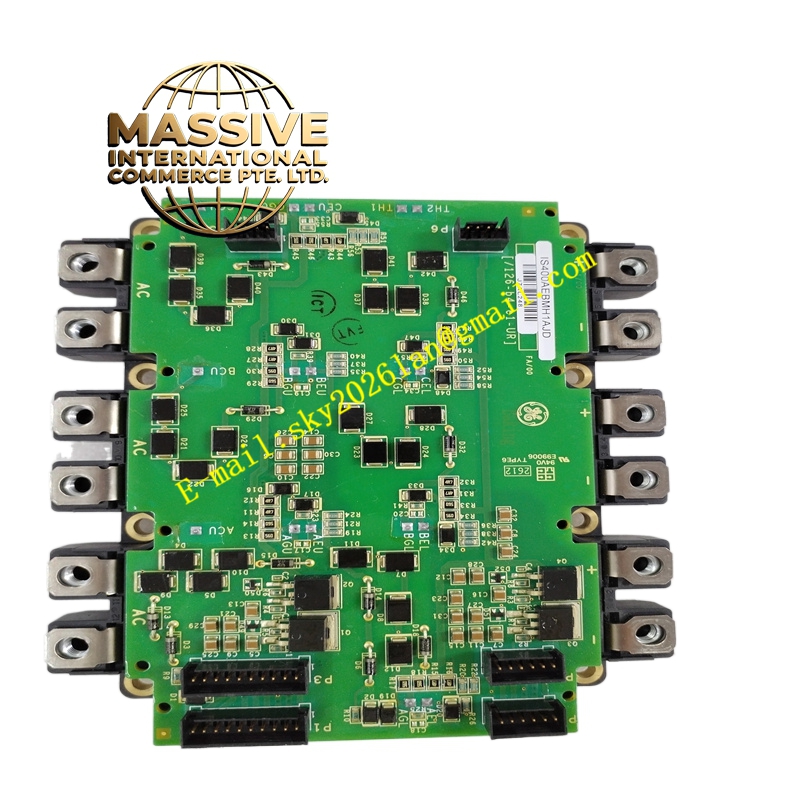

Material and Structural Characteristics:
- Industrial-grade PCB with high-reliability components
- Multiple edge and vertical connectors for board-to-board and field signal interfacing
- Includes fuses, capacitors, resistors, relays, and support circuitry
- Constructed for durability in power plant environments
- Board markings include GE logo and identification codes
Working Principle: The board receives raw analog signals from terminal boards (TBQA, TBQB, TBQC) via JA, JB, JF, and JG connectors. It performs scaling, filtering, and isolation to produce conditioned signals. Conditioned signals are transmitted to STCA via 3PL, to TCQC via JE, and trip signals to TCTG via JD. The TCQA section specifically scales 4–20 mA inputs for critical measurements such as compressor stall detection and fuel flow pressure. Installation Requirements:
- Install into I/O cores R1, R2, and R3 of a Mark V control cabinet
- Ensure proper mating with TCQA slot and associated terminal boards
- Secure all connectors and verify correct seating
- Follow GE installation manuals for grounding and shielding
- Verify jumper configurations match application requirements before powering
Usage Notes:
- Only use in Mark V systems with compatible terminal boards and software versions
- Verify hardware jumper settings match the application (see GE manuals)
- Avoid hot-swapping; power down the rack during installation or removal
- Periodically inspect connectors for corrosion or loose contacts
- Follow ESD precautions during handling and maintenance
