GE IS420PUAAH1A

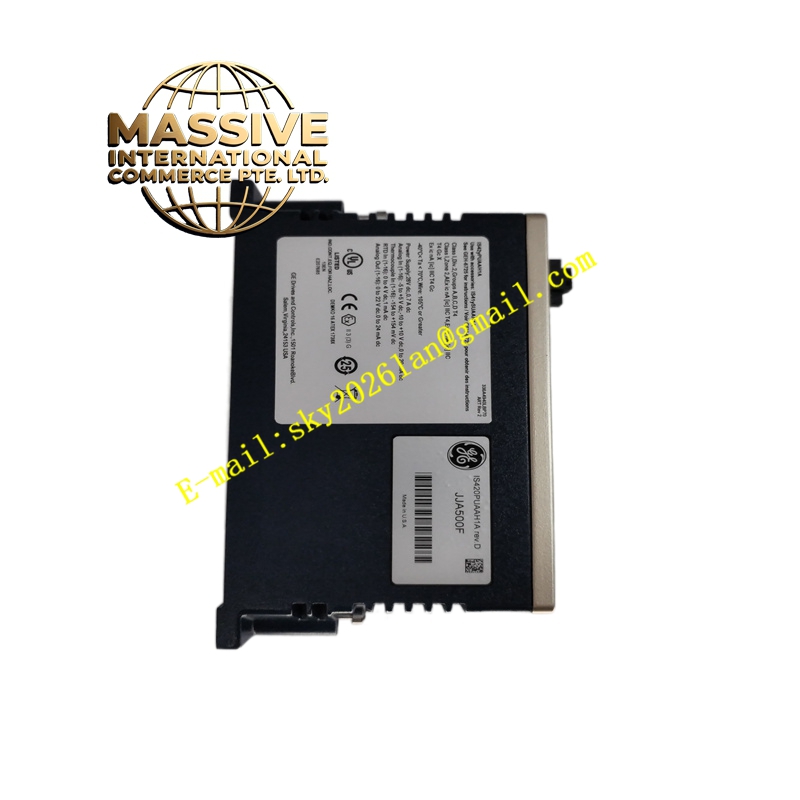

GE IS420PUAAH1A - Image 2

GE IS420PUAAH1A

Product Introduction: The GE IS420PUAAH1A is a Universal Input/Output (I/O) Pack designed for the Mark VIe Speedtronic control system. It provides 16 simplex analog channels that are individually configurable for thermocouple, RTD, voltage, current, digital I/O, or pulse accumulator functions. The module is compatible with ControlST V7.02.00C and later versions and is used in distributed control systems and balance-of-plant (BOP) applications.

Request Quote
Category: SKU: GE IS420PUAAH1A

Description

GE IS420PUAAH1A

Technical Specifications:

  • Series: GE Mark VIe / Mark VIeS
  • Part Number: IS420PUAAH1A
  • Functional Abbreviation: PUAA
  • Channels: 16 simplex analog channels, individually configurable
  • Supported I/O Types:
    • Thermocouple (TC) inputs
    • RTD inputs
    • 4–20 mA current input (with HART option)
    • 5 V or 10 V voltage input
    • 0–20 mA current output (with HART option)
    • Digital input and output
    • Pulse accumulator
  • Ethernet Ports: Dual RJ-45 (IONet), supports dual Ethernet networks
  • Power Input: Nominal 28 V DC (module power)
  • Operating Temperature: -40 °C to +70 °C (-40 °F to +158 °F)
  • Relative Humidity: 5% to 95% non-condensing
  • Frame Rate: Up to 10 ms (fastest)
  • Normal Scan Time: 5 ms
  • Measurement Accuracy: Better than 0.1% across the specified temperature range
  • Power Consumption: 8.1 W static plus per-channel power:
    • 0.02 W per channel for TC, 5 V, 10 V, externally-wetted discrete input, pulse accumulator, or RTD mode
    • 0.04 W per channel for externally-fed mA input and internally-wetted discrete input
    • Up to 0.68 W per channel for internally-fed mA input or mA output, depending on external loop resistance
  • Installation: DIN rail or panel mount in Mark VIe I/O nodes
  • Dimensions: Approximately 16 × 12 × 8 cm (typical package)
  • Weight: Approximately 0.5 kg
  • Certifications: CE, hazardous location certifications per Mark VIe series

Functional Features:

  • 16 individually configurable simplex analog channels in a single compact package
  • Supports thermocouple, RTD, voltage, current, digital I/O, and pulse accumulator on one module, reducing hardware variety and spare parts inventory
  • Independently wireable “black section” enables per-channel commissioning without affecting other sections, reducing panel footprint and system footprint
  • Dual RJ-45 IONet Ethernet ports for redundant, deterministic communication with controllers
  • Automatic reconfiguration support for firmware and parameter updates
  • Hot-swap replacement capability for maintenance without node shutdown
  • Onboard signal conditioning, A/D conversion, and comprehensive diagnostics (open circuit, over-range/under-range, channel health)
  • HART communication support in selected modes
  • Pulse accumulator inputs up to 25 kHz

Application Scenarios:

  • Gas and steam turbine control systems in Mark VIe architectures
  • Balance-of-plant (BOP) control in power generation facilities
  • Distributed control systems requiring mixed-signal I/O flexibility
  • Retrofit and upgrade projects where space and spare parts consolidation are priorities
  • Peaking power plants and combined-cycle facilities with frequent start/stop cycles

Performance Parameters:

  • 5 ms typical scan time with accuracy better than 0.1% across the operating temperature range
  • 10 ms fastest frame rate for IONet communication
  • High channel-to-channel and channel-to-ground isolation for noise immunity
  • Static power consumption of 8.1 W plus scalable per-channel power based on configured I/O type
  • Supports redundant IONet architecture at the controller level

Material and Structural Characteristics:

  • Industrial-grade PCB with conformal coating for harsh environments
  • Compact package approximately 16 × 12 × 8 cm
  • Dual RJ-45 Ethernet ports and 3-pin power input
  • Terminal board interface for field wiring with independently wireable sections
  • DIN-rail or panel-mount enclosure
  • Weight approximately 0.5 kg

Working Principle: The PUAA pack interfaces with field devices through a terminal board, acquiring analog and digital signals from sensors and driving analog and digital outputs to actuators. Each of the 16 channels is software-configured via ControlST for a specific signal type. The pack performs onboard signal conditioning, A/D conversion, and diagnostics, then transmits processed data to the Mark VIe controller over dual redundant IONet Ethernet ports at frame rates as fast as 10 ms. The pack supports hot-swap replacement and automatic reconfiguration for firmware updates. Installation Requirements:

  • Mount on a compatible terminal board in a Mark VIe I/O node using DIN-rail or panel mounting
  • Connect 28 V DC module power via the 3-pin power input
  • Wire field signals to the terminal board, utilizing the independently wireable sections for per-channel commissioning
  • Connect one or two Ethernet cables to the RJ-45 ports; when using dual connections, ENET1 should connect to the R controller network
  • Configure each channel using ControlST V7.02.00C or later
  • Ensure firmware version V05.03.00C or later is loaded for full functionality

Usage Notes:

  • Confirm ControlST version compatibility (V7.02.00C or later) before deployment
  • Verify PUAA firmware version (V05.03.00C or later) for automatic reconfiguration support
  • Use the independently wireable black sections to enable per-channel commissioning without disrupting other channels
  • Ensure proper grounding and shielding for analog signal wiring to maintain accuracy
  • Monitor diagnostics in ControlST for open-circuit, over-range, and channel health status
  • The module supports hot-swap replacement, but follow GE procedures to avoid disruption
  • Select HART-enabled modes where HART communication with field devices is required
