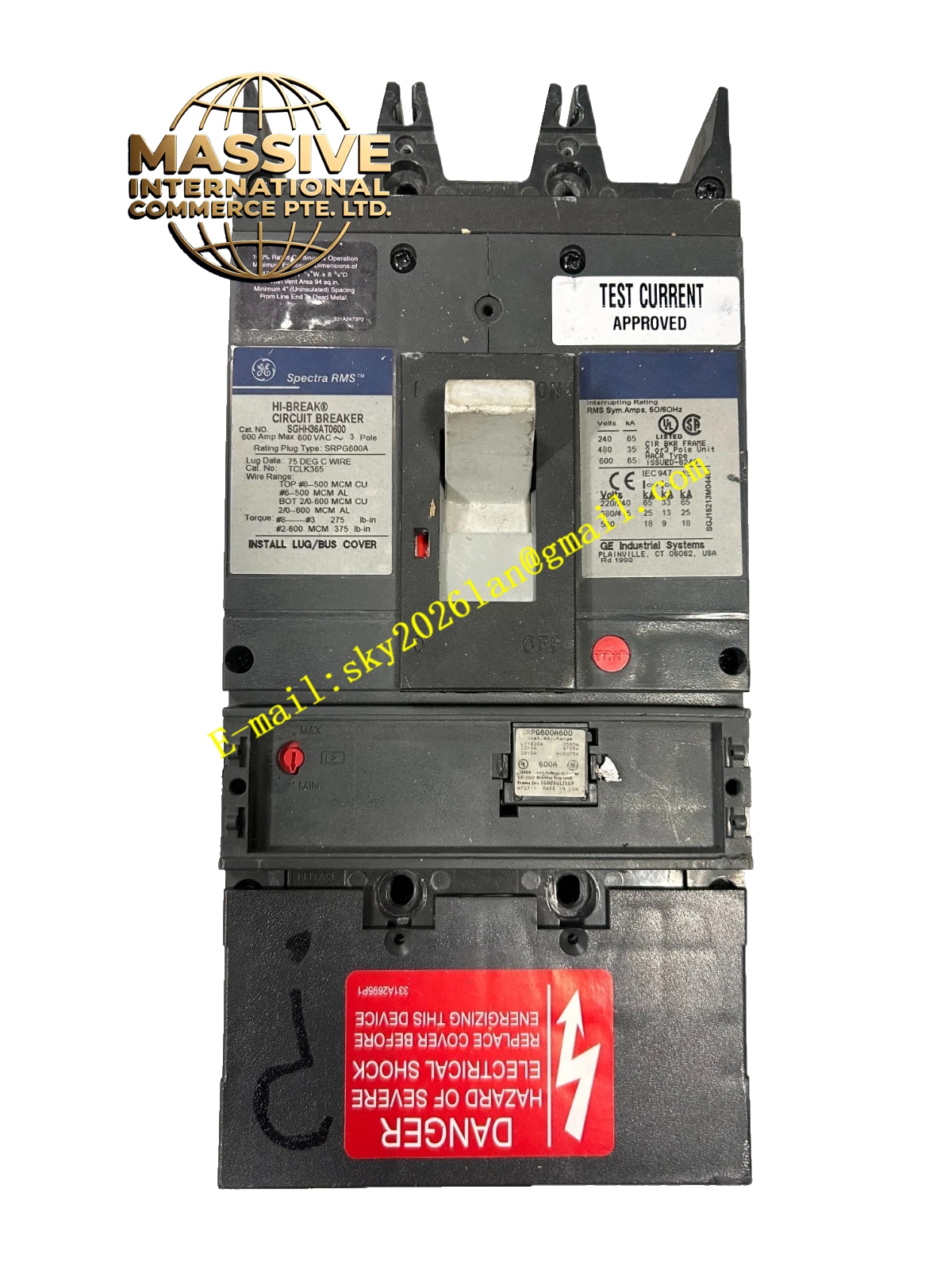

GE SGHH36AT0600
Technical Specifications:
- Brand: General Electric (GE)
- Model: SGHH36AT0600
- Product Type: Molded Case Circuit Breaker (MCCB)
- Poles: 3-Pole
- Voltage Rating: 600V AC
- Current Rating: 600 Amps
Functional Features:
- Advanced Trip Unit: Features a highly adjustable electronic trip unit for precise customization of protection parameters.
- High Reliability: Designed to operate flawlessly in harsh, electrically noisy industrial environments.
- Easy Maintenance: Allows for quick inspection and replacement of internal components without removing the breaker frame from the panel.
Application Scenarios:
Ideal for protecting large motors, industrial transformers, switchgear main buses, and heavy process equipment in petrochemical and manufacturing facilities.
Performance Parameters:
- Continuous Current: Rated for 600A continuous load without derating under standard conditions.
- Precision Tripping: Highly accurate trip curves to prevent nuisance tripping while ensuring equipment safety.
Material Composition:
Constructed with high-dielectric strength thermoset materials and precision-machined copper bus assemblies.
Structural Characteristics:
Standardized frame size with a front-accessible operating mechanism. Features auxiliary contact provisions and shunt trip capabilities for remote control integration.
Working Principle:
Continuously monitors the current flowing through the circuit. When the electronic trip unit detects an anomaly matching the programmed protection curve, it sends a signal to an internal shunt release, mechanically forcing the contacts open.
Installation Requirements:
Install in a clean, dry environment. Verify that the panel bus rating matches or exceeds the breaker’s interrupting capacity.
Usage Precautions:
Ensure proper phase rotation during installation. Do not attempt to recalibrate the internal trip unit; return to factory for calibration if required.
