Description

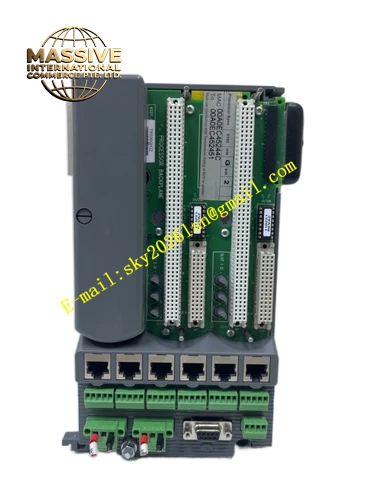

ICS Triplex T8913
Technical Specifications & Performance Parameters:
- Bus Type: Trusted proprietary fault‑tolerant IMB Inter‑Module Bus
- Communication Physical Layer: Differential ECL‑compatible high‑speed serial link
- Maximum Link Distance: 100 meters when using factory‑specified shielded differential cable
- Data Transfer Rate: 40 Mbit/s fault‑tolerant bus transmission
- Power Supply: 20 VDC ~ 32 VDC from remote expander‑rack backplane, nominal 24 VDC
- Power Consumption: 6.8 W maximum
- Galvanic Isolation: 1500 V reinforced isolation between remote‑rack local IMB bus and long‑distance differential link
- Safety Certification: TÜV IEC 61508 SIL 3, UL, CE
- Operating Temperature: ‑20 °C ~ +60 °C
- Storage Temperature: ‑40 °C ~ +85 °C
- Ambient Humidity: 5 %‑95 % RH non‑condensing
- Weight: 0.82 kg
- Form Factor: Standard Trusted rack plug‑in module
Functional Features:
- Remote‑side signal conversion hardware matched with T8912 main‑rack expander‑interface module
- Convert incoming long‑distance differential serial bus signal into parallel IMB bus signal for remote expander‑rack internal I/O modules
- Continuous real‑time link diagnostics, detect incoming cable breakage, signal attenuation and main‑rack link‑loss condition
- Hot‑swap support for online module replacement without remote‑rack I/O hardware permanent damage
- Front‑panel LED indicators show incoming‑link status, local remote‑rack IMB bus status and communication‑fault alarm
- Timestamped incoming‑link fault‑events transmit to main‑rack system fault historian via reverse‑direction IMB bus channel
- Preserve complete TMR fault‑tolerant data integrity for all remote‑I/O signal transmission paths
- Support multi‑expander‑rack cascading within official quantity and distance constraints
Working Principle: Long‑distance differential serial fault‑tolerant bus signal from main‑rack‑side T8912 module accesses T8913 front‑panel differential connector. Signal conditioning circuit restores attenuated differential signal. Conversion circuit translates serial differential signal back into parallel IMB bus signal. Restored parallel IMB bus signal connects to remote expander‑rack internal backplane bus, provides fault‑tolerant communication channel for all I/O modules inside remote rack. On‑board monitoring circuit continuously samples incoming‑link signal quality. Cable breakage or main‑rack link‑failure triggers timestamped fault‑alarm and transmits fault information back to main‑rack fault historian. TMR voting mechanism for I/O data remains fully effective across whole remote‑transmission path.
Material Composition & Structural Characteristics:
- Housing: Die‑cast aluminum alloy electromagnetic‑shielding shell
- Circuit substrate: Multi‑layer FR‑4 industrial printed circuit board, integrate high‑speed differential signal‑restoration and galvanic‑isolation components
- Backplane connector: Gold‑plated high‑density anti‑vibration industrial connector
- Front‑panel interface: Industrial‑grade differential signal connector for connecting to main‑rack‑side T8912
- Front panel: Flame‑retardant PC engineering plastic with LED indicator window, IP20 protection grade
- Plug‑in card‑type structure for Trusted remote expander‑rack dedicated interface‑slot installation
Installation Requirements:
- Insert T8913 module into dedicated IMB‑interface slot of Trusted remote expander‑rack chassis, tighten front‑panel locking screws
- Use factory‑specified shielded differential bus cable to connect T8913 with main‑rack‑side T8912 module
- Cable laying comply with maximum distance specification, avoid sharp bending and mechanical extrusion damage
- Separate remote‑link bus‑cable routing from high‑voltage power‑cables, maintain minimum 15 cm physical spacing
- Cable shielding layer double‑end grounding at main‑rack cabinet ground bus‑bar and remote‑expander‑rack cabinet ground bus‑bar
- Remote‑expander‑rack cabinet protective ground resistance ≤4 Ω
- Remote expander‑rack power‑supply configuration must satisfy total I/O load power‑demand requirement
Application Scenarios:
- Trusted remote I/O expander‑rack side fault‑tolerant IMB bus signal restoration interface
- Petrochemical plant geographically distributed remote‑I/O cabinet communication terminal hardware
- Chemical‑plant scattered‑workshop safety‑instrumented‑system remote‑rack bus interface
- Off‑shore platform multi‑container‑type safety‑control‑cabinet remote‑side bus conversion unit
- Power‑plant multi‑workshop safety‑interlock remote‑I/O rack signal‑recovery hardware
Usage Notes:
- Hot‑swap operation only permitted when remote‑expander‑rack system reports full hardware‑health status
- Module shell disassembly is forbidden; zero user‑serviceable internal spare parts
- Only deploy official designated differential shielded bus cable for cross‑rack link connection
- After module replacement or cable modification, verify incoming‑link communication status and remote‑I/O data consistency with main‑rack processor
- Operate strictly within rated operating temperature and maximum transmission‑distance specification limits
- Periodically inspect remote‑bus cable mechanical integrity and remote‑rack cabinet grounding‑connection condition
