Description

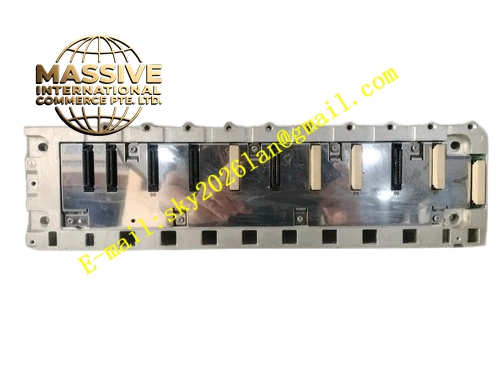

Schneider BMXXBP0800
Technical Specifications:
- Brand: Schneider Electric
- Model: BMXXBP0800
- Product Type: Backplane / Rack
- Compatible System: Modicon M340 / M580 / X80 series
- Number of Slots: 8 bus slots (X-bus)
- Power Consumption: 2 W
- Electrical Connection: 1 XBE expansion module connector
- Mounting: 35 mm symmetrical DIN rail or Panel/Plate mounting (M4, M5, M6 screws)
- Dimensions: 372.8 mm (W) × 103.7 mm (H) × 19 mm (D)
- Weight: 0.95 kg
- Operating Temperature: 0°C to 60°C
- Humidity: 10% to 95% (non-condensing)
- Protection Rating: IP20
Functional Features:
- 8 slots for CPU, I/O, and special function modules
- Supports hot-swappable modules (replacement without powering down)
- XBE expansion connector for local expansion
- Green Premium Product (RoHS and REACh compliant)
- Compact design for space efficiency
Application Scenarios:
- Medium-sized production lines
- Process control systems
- Material handling and conveyor systems
- Packaging machinery
Performance Parameters:
- Slot Count: 8
- Bus Type: X-bus
- Power Consumption: 2 W
Material Composition:
- High-strength plastic housing
- Copper bus bars
- Metal mounting clips
Structural Features: The backplane features a linear arrangement of 8 slots. It includes mounting holes for DIN rail or panel installation and an expansion connector on the side.
Working Principle: The backplane distributes power and data signals from the power supply and CPU to the inserted modules via the X-bus. It ensures high-speed communication between modules.
Installation Requirements:
- Mount on a 35 mm DIN rail or secure to a panel using 4 screws.
- Ensure adequate ventilation around the rack.
- Connect the power supply to the designated slots.
Usage Notes:
- The power supply module (BMXCPS) does not occupy a bus slot.
- Ensure the total current consumption of modules does not exceed the power supply capacity.
- Verify the compatibility of modules with the M340 platform.
